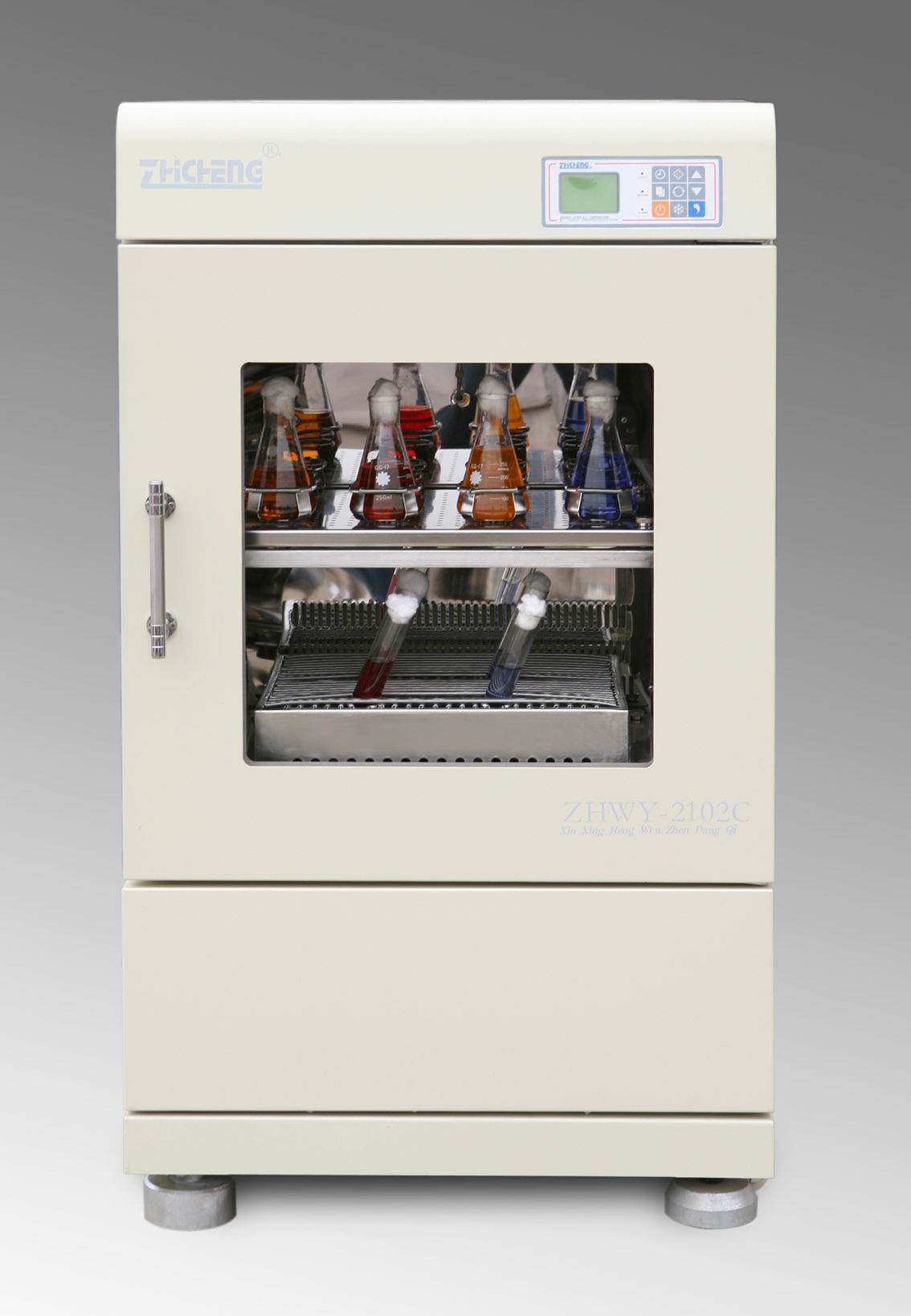

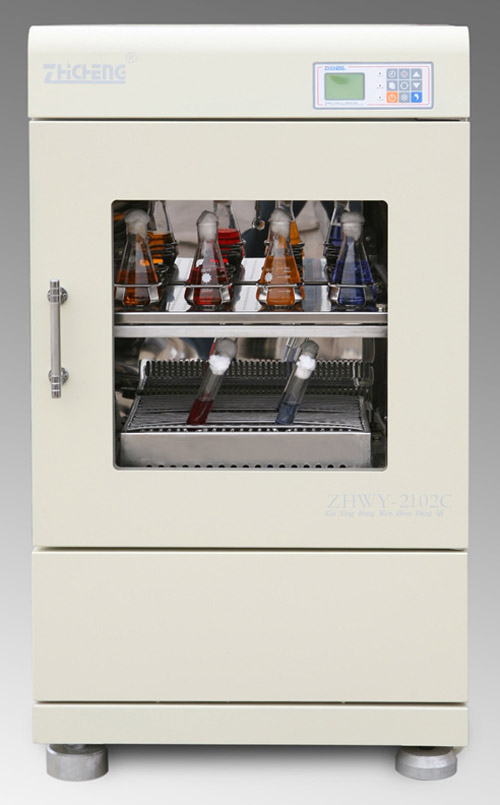

Item: shaking incubator
Model: ZHWY-2102C
Temperature Range: ambient-20°C to 60°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Temperature Sensor: PT100
Heat Distribution: Forced-air circulation
Control: P.I.D Microprocessor
Diameter of Orbit: 26mm
Shaking Speed: 30-300 rpm (±1 rpm)
Shaking Mode: orbital
Timer: 1 minute to 500 hours
Setting: Digital
Display: LCD
Standard Capacity: 250mlx26
Max.Capacity:
50mlx56 or 100mlx56 or
250mlx28 or 500mlx22
Platform Size: 496x350 mm
Platform included: 2PCs
Motor Power: 950W
Interior Dimension: 615x440x640 mm
Volumn: 173L
Exterior Dimension: 840x750x1445 mm
Electrical Requirement: 110-240V 50/60Hz
Net Weight: 165Kg
Gross Weight: 190Kg
Warranty: 1 year
Approval: CE, ISO (Download CE Certificate)

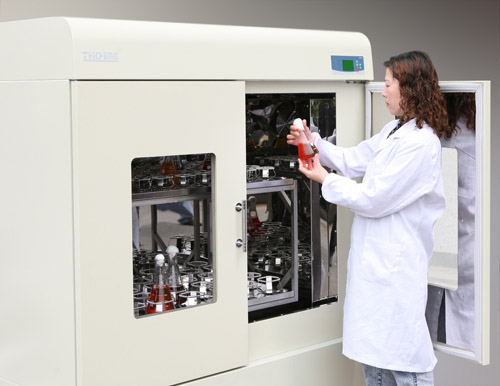

Model: ZHWY-2112B
Temperature Range: ambient-20°C to 60°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Diameter of Orbit: 35mm
Shaking Speed: 30-300 rpm(±1 rpm)
Timer: 0-500 hours
Capacity: 100mlx154 or 250mlx90 or 500mlx70 or 1000mlx36
Platform Size: 970x560mm
Platform included: 2PCs
Exterior Dimension: 1200x820x1600 mm
Motor Power: 961W
Voltage: 110-240V 50/60Hz
Weight: 450Kg
Warranty: 1 year
Approval: CE, ISO

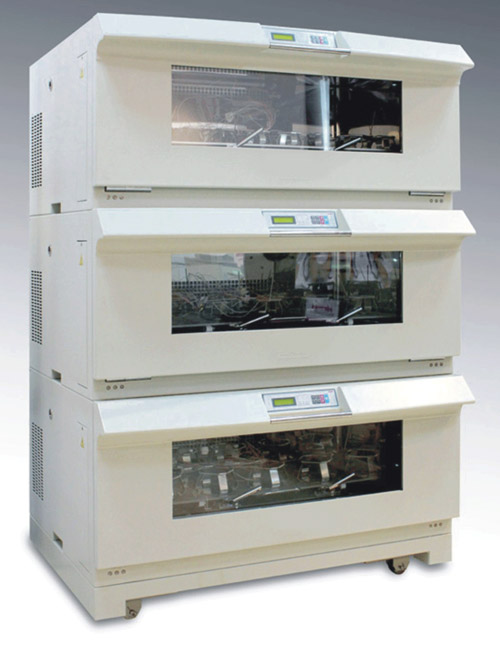

Model: ZWYR-D2403 incubator shaker
Triple stack, independent control
Shaking Mode: Orbital
Refrigeration: CFC-free, R134a
Temperature Range: Ambient-20°C to 60°C (or 4-60°C at ambient 25°C)
Temperature Set Resolution:±0.1°C
Temperature Uniformity: ±0.5~1°C
Heat Distribution: Forced-air circulation
Controller: P.I.D Microprocessor
Setting: Digital
Display: LCD
Diameter of Orbit: 50mm
Shaking Speed: 30-300 rpm (±1 rpm)
Timer: 1 minute to 500 hours
Capacity/each chamber: 100mlx50 or 250mlx32, 500mlx26 or 1000mlx14 or 2000mlx8
Platform Size: 800x430 mm
Platform included: 3
Chamber Size/each: 920x532x393mm (192L)/each
Motor Power: 3600W
Electrical Requirement: AC 220~230V 50/60Hz
Weight: 630Kg
External Dimension: 130x95x189cm
Warranty: 1 year

Easy-to-use, intuitive touch screen controller (optional)

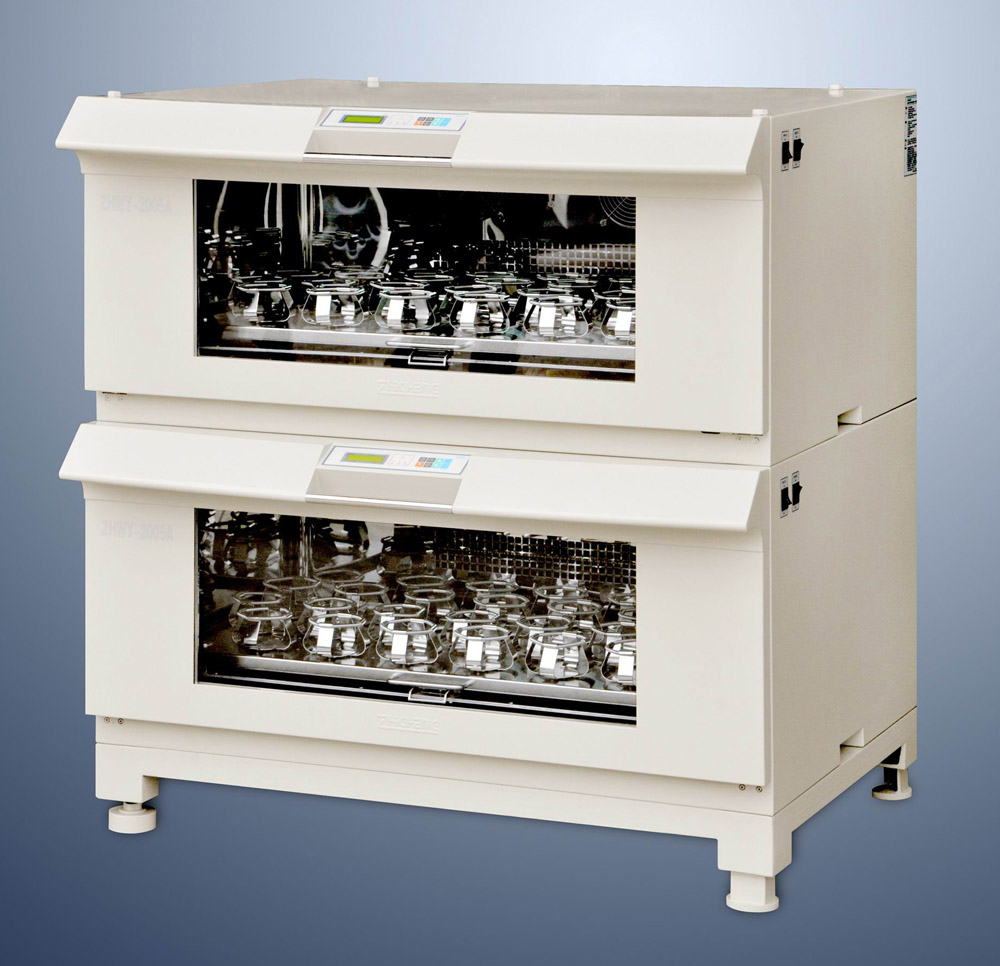

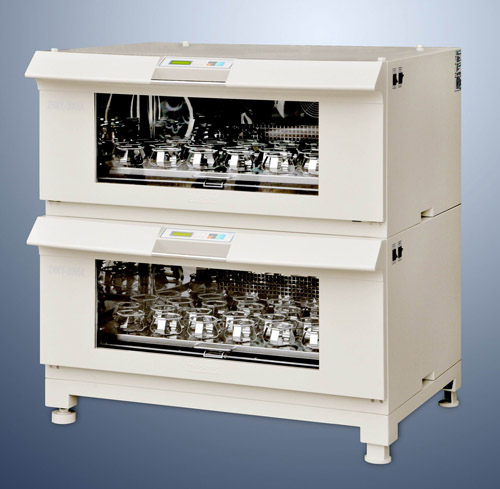

(Applicable to models: ZHWY-2102C, ZHWY-2102, ZHWY-2112B, ZHWY-A2005, ZWYR-2403, ZWYR-240, ZHWY-211C, ZHWY-211D.)

With the newly designed microprocessor-based, 65K colors, 4.3 inch, 480x272 matrix, intuitive operation touch screen controller, controls for entering & viewing setpoints becomes exceptionally easy. The touch screen shows temperature readings along with detailed information on timer, speed, running modes: Manual mode and Programmble mode. The display is bright and clearly visible from all angles.

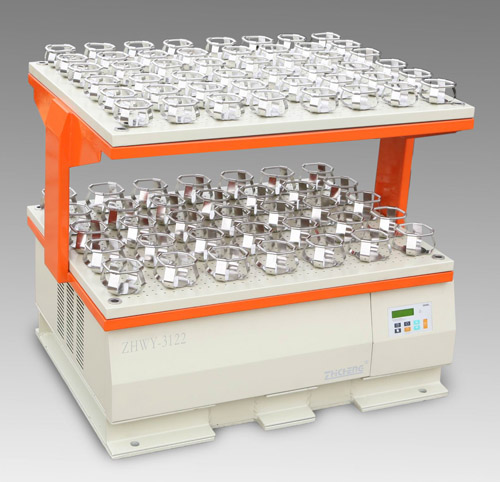

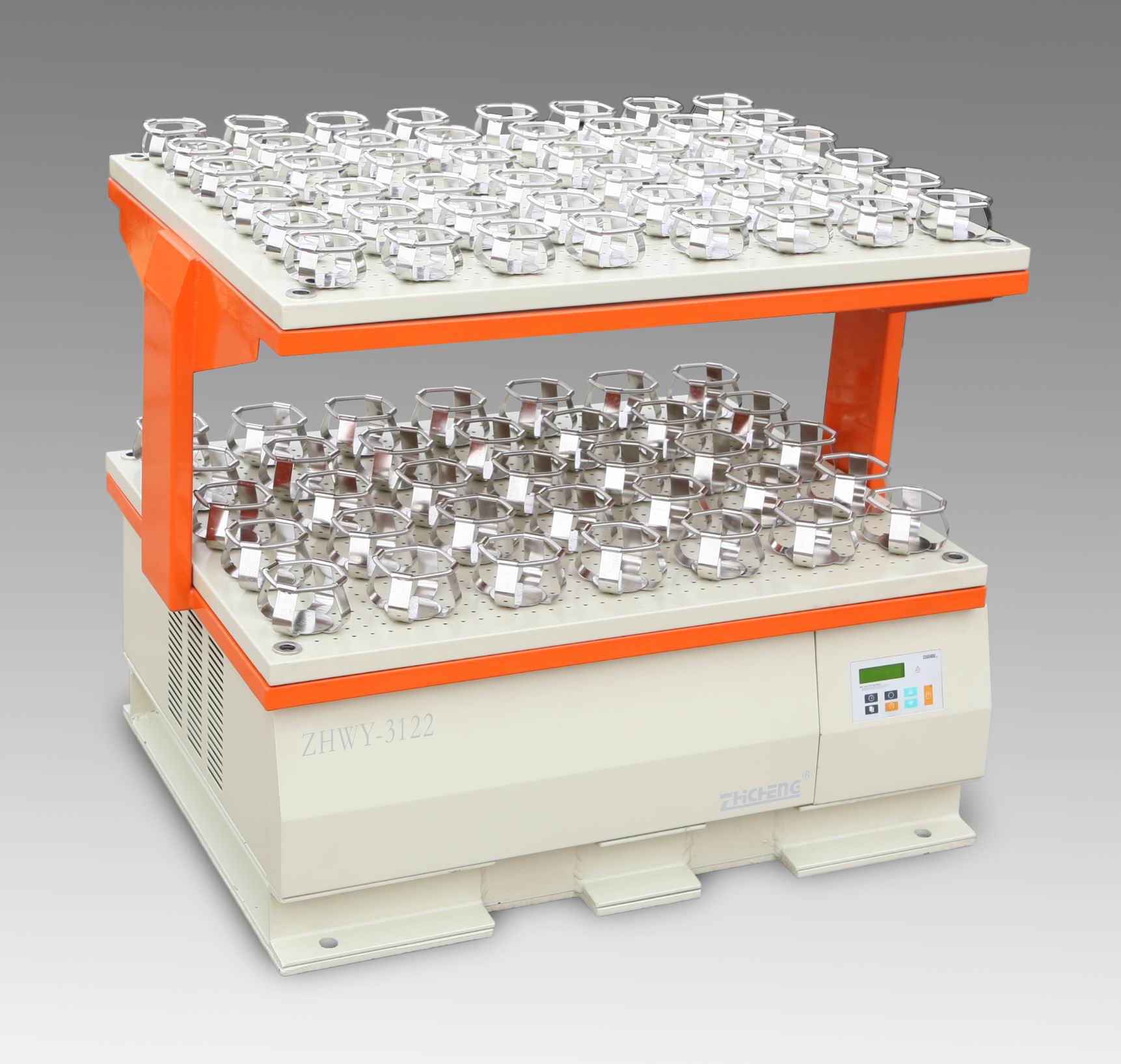

Model: ZHWY-3112
Item: orbital shaker
Control: P.I.D microprocessor
Setting: Digital
Display: LCD
Shaking Speed: 30-300 rpm (±1rpm)
Diameter of Orbit: 35mm
Timer: 0-500 hours
Standard Capacity: 250mlx46, 1000mlx18
Max.Capacity:
50mlx136 or 100mlx136 or 250mlx94
or 500mlx64 or 1000mlx36
Platform Size: 800x600 mm
Platform included: 2PCs
Exterior Dimension: 900x640x780 mm
Voltage: 110-240V 50/60Hz
Weight: 340Kg
Approval: CE, ISO
Warranty: 1 year

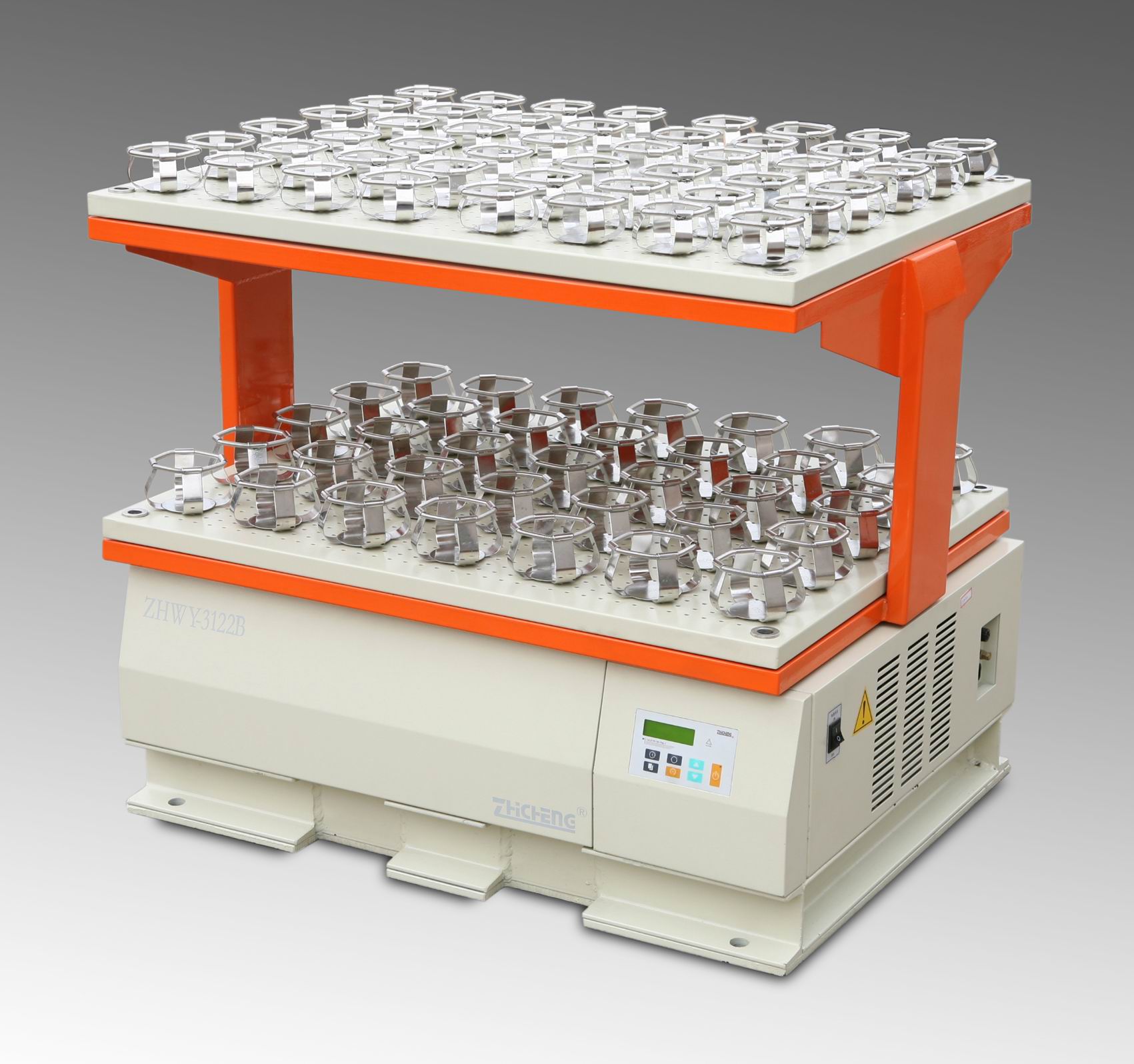

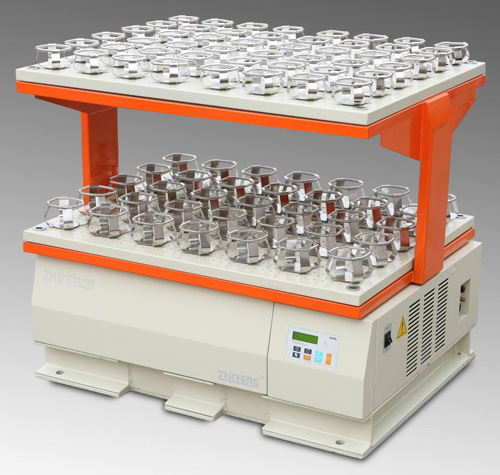

Model: ZHWY-3222
Item: orbital shaker
Control: P.I.D microprocessor
Setting: Digital
Display: LCD
Shaking Speed: 30-300 rpm (±1rpm)
Diameter of Orbit: 35mm
Timer: 0-500 hours
Standard Capacity: 250mlx50, 1000mlx22
Max.Capacity: 50mlx172 or 100mlx172 or 250mlx106 or 500mlx74 or 1000mlx44
Platform Size: 920x640 mm
Platform included: 2PCs
Exterior Dimension: 1100x760x780 mm
Voltage: 110-240V 50/60Hz
Power: 400W
Weight: 410Kg
Approval: CE, ISO
Warranty: 1 year (Download CE Certificate)
