ZHICHENG® floor model incubator shakers provide large capacity shaking for flasks up to 5 liters. The ruggedly built triple eccentric motor-drive mechanism guarantees smooth and quiet orbital shaking without vibration. A comfortable height allows easy access to setpoints control in terms of speed and temperature. A high velocity air circulation system disperses air uniformly throughout the chamber, which ensures that all samples are exposed to the optimum temperature regardless of sample locations.

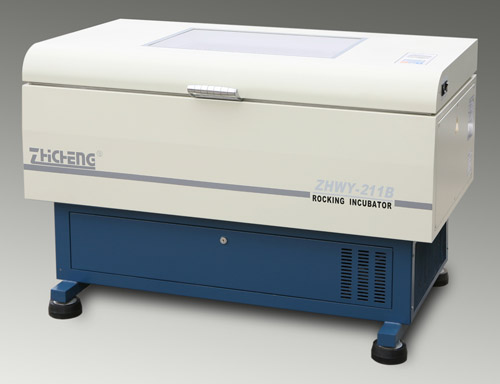

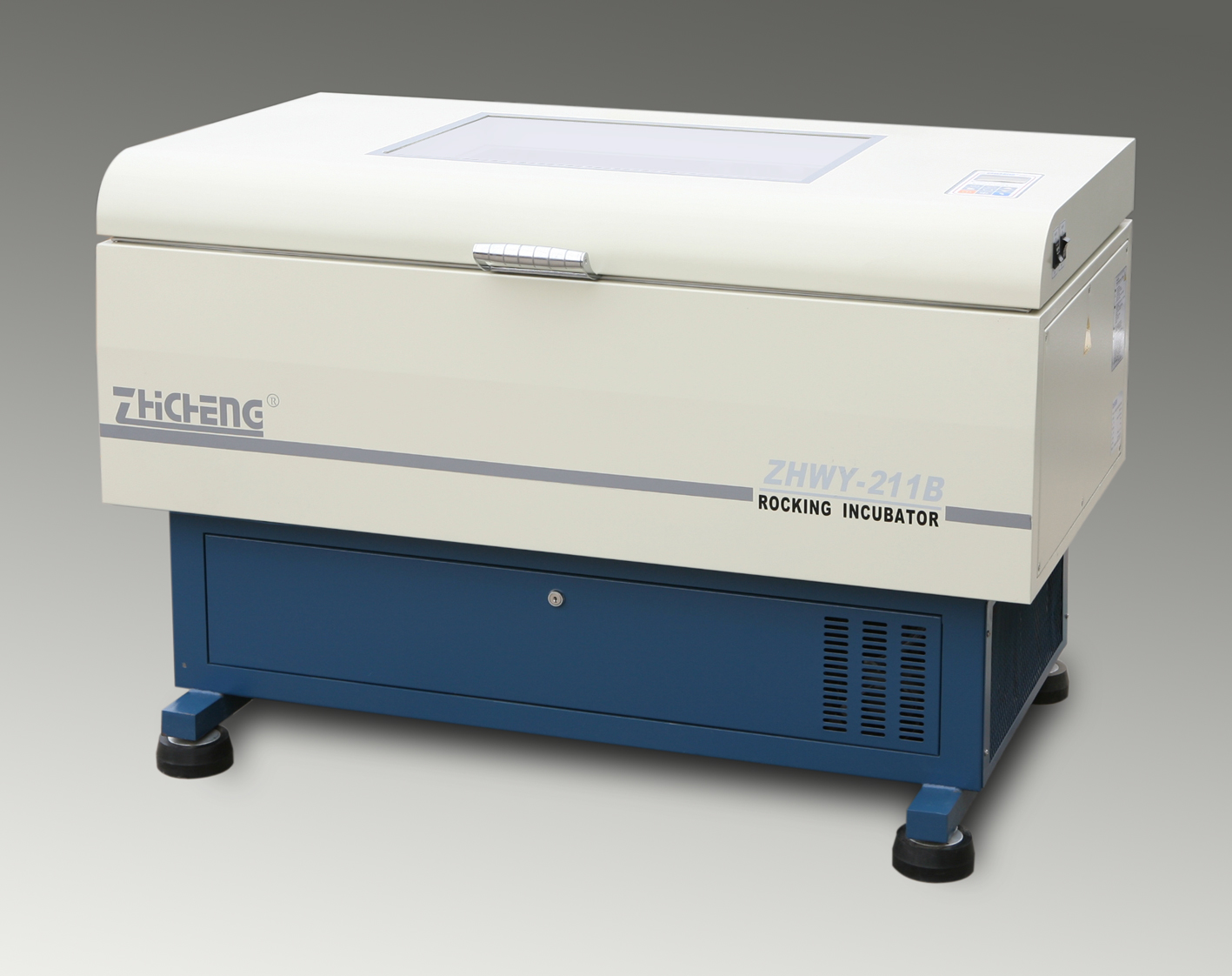

Model: ZHWY-211B
Temperature Range: 4C to 60C
Temperature Set Resolution: 0.1C
Temperature Uniformity: 0.5-1C
Heat Distribution: Forced-air circulation
Control: P.I.D Microprocessor
Setting: Digital
Display: LCD
Diameter of Orbit: 26mm
Shaking Speed: 30-300 rpm (1rpm)
Standard Capacity: 500mlx28
Max. Capacity: 50mlx64 or 100mlx64 or 250mlx40 or 500mlx28 or 1000mlx15
Timer: 1 minute to 500 hours
Platform Size: 920x500 mm
Motor Power: 866W
Electrical Requirement: 110-240V 50/60Hz
Weight: 236Kg
Warranty: 1 year
Approval: CE, ISO

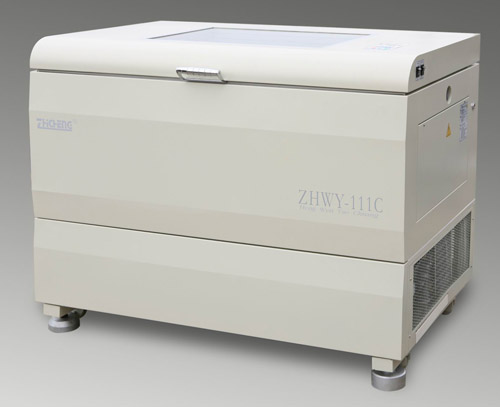

Model: ZHWY-111C
Temperature Range: Ambient+5C to 60C
Temperature Set Resolution: 0.1C
Temperature Uniformity: 0.5-1C
Heat Distribution: Forced-air circulation
Control: P.I.D Microprocessor
Setting: Digital
Display: LCD
Diameter of Orbit: 26mm
Shaking Speed: 60-300 rpm (1 rpm)
Timer: 1 minute to 500 hours
Standard Capacity: 2000mlx8
Max.Capacity: 500mlx28, 1000mlx18, 2000mlx8, 3000mlx8, 5000mlx6
Platform Size: 920x500 mm
Platform included: 1PC
Motor Power: 951W
Electrical Requirement: 110-240V 50/60Hz
Net Weight: 256Kg
Approval: CE, ISO
Warranty: 1 year

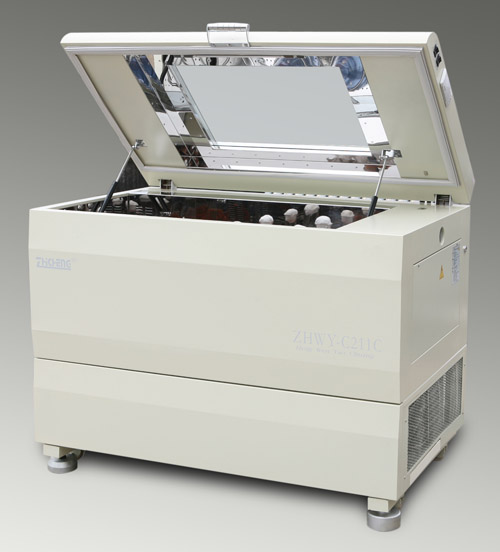

Model: ZHWY-211C
Shaking Mode: Orbital
Temperature Range: 4C to 60C
Temperature Set Resolution: 0.1C
Temperature Uniformity: 0.5-1C
Temperature Sensor: PT100
Heat Distribution: Forced-air circulation
Control: P.I.D Microprocessor
Diameter of Orbit: 26mm
Shaking Speed: 60-300 rpm (1 rpm)
Timer: 1 minute to 500 hours
Setting: Digital
Display: LCD
Standard Capacity: 2000mlx8
Max.Capacity:
500mlx28, 1000mlx18
2000mlx8, 3000mlx8
5000mlx6
Platform Size: 920x500 mm
Platform included: 1PC
Motor Power: 951W
Electrical Requirement: 110-240V 50/60Hz
Net Weight: 298Kg
Approval: CE, ISO
Warranty: 1 year

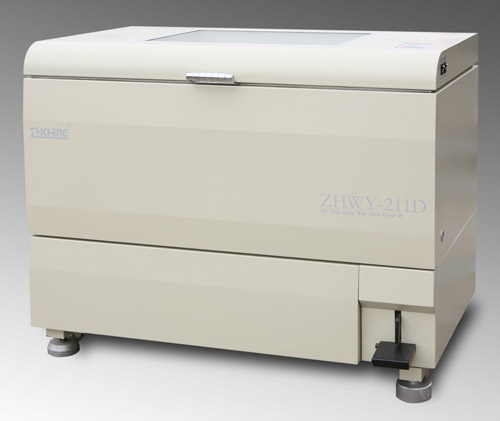

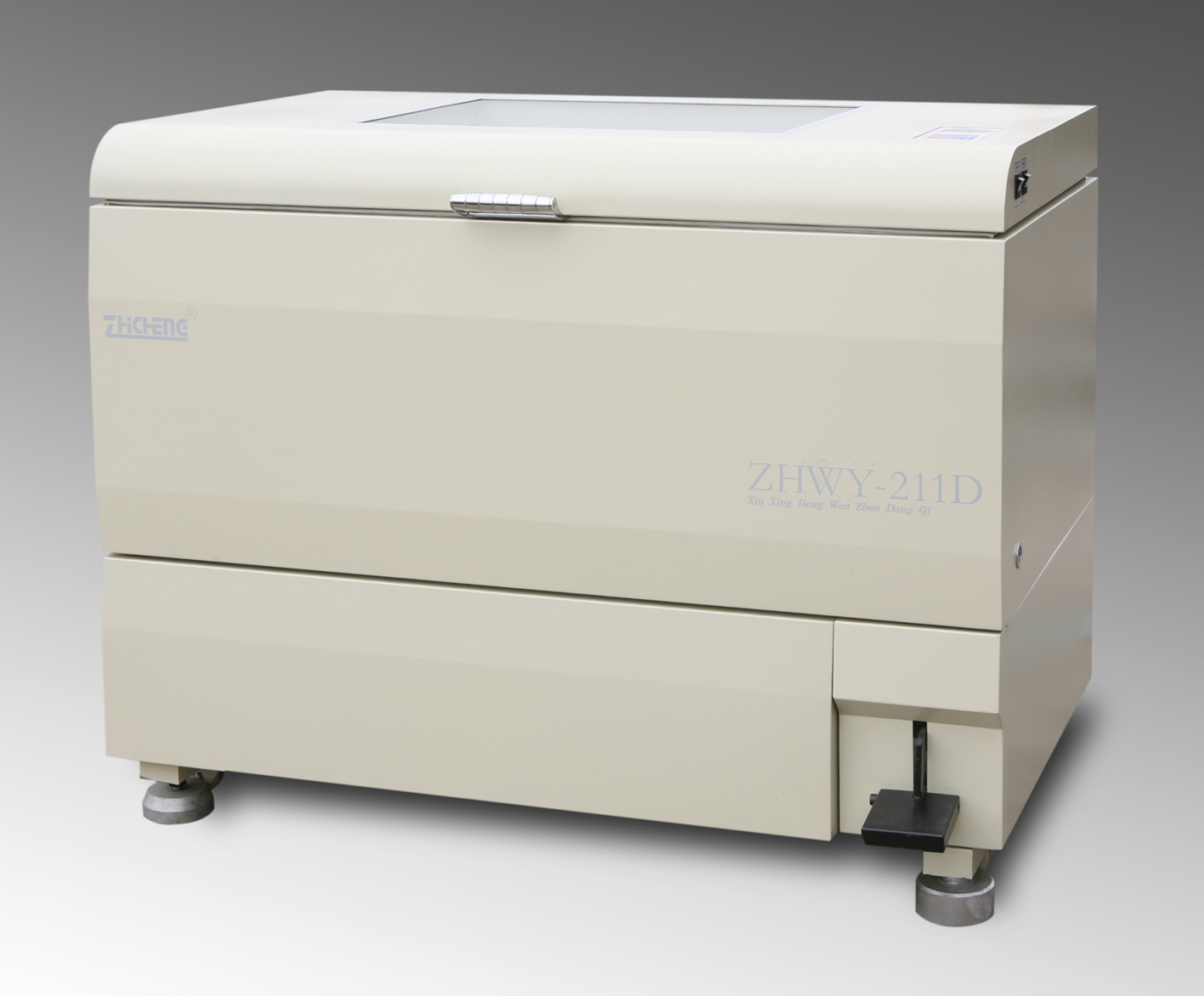

Model: ZHWY-211D
Shaking Mode: Orbital
Temperature Range: 4C to 60C
Temperature Set Resolution: 0.1C
Temperature Uniformity: 0.5-1C
Temperature Sensor: PT100
Heat Distribution: Forced-air circulation
Diameter of Orbit: 26mm
Shaking Speed: 30-300 rpm (1 rpm)
Timer: 1 minute to 500 hours
Standard Capacity: Support 2000mlx8 flasks
Volume: 286L
Max.Capacity: 50mlx82, 100mlx82, 250mlx52, 500mlx38, 1000mlx22, 2000mlx12, 3000mlx11, 5000mlx6
Cover Lift Mechanism: Foot Pedal
Platform Size: 940x584 mm
Motor Power: 1340W
Electrical Requirement: AC 110-240V 50/60Hz
Weight: 390Kg
External Dimension: 126x83x100cm
Approval: CE, ISO
Warranty: 1 year

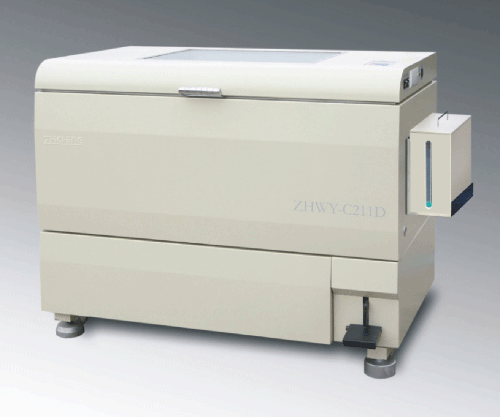

Model: ZHWY-C211D (with humidity control)
Shaking Mode: Orbital
Temperature Range: 4°C to 60°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Running Mode: Manual, Programmable Mode
Heat Distribution: Forced-air circulation
Diameter of Orbit: 26mm
Shaking Speed: 30-300 rpm (±1 rpm)
Timer: 1 minute to 500 hours
Capacity: 50mlx66, 100mlx66, 250mlx43, 500mlx30, 1000mlx16, 2000mlx8, 3000mlx8, 5000mlx6
Cover Lift Mechanism: Foot Pedal
Platform Size: 940x584 mm
Motor Power: 2500W
Electrical Requirement: AC 220-230V 50/60Hz
Net Weight: 320Kg
External Dimension: 138x79x102cm
Approval: CE, ISO

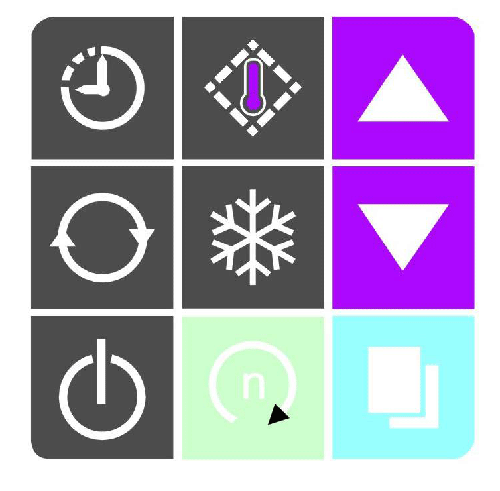

LCD Screen (Standard)

All the incubator shakers manufactured by ZHICHENG feature a large, bright LCD screen that presents a menu of functional readouts on setpoints of speed, temperature and timer. Its user-friendly interface makes parameter setting as easy as possible, without training for the user being necessary.
