ZXDP-A series incubators (heated only)


For routine cell & tissue culture applications in the temperature range of ambient +5°C to 60°C, can the scientists and teachers have access to a new, cost-effective incubator while still maintaining equivalent reliability and efficiency? The answer is yes. With the launch of ZXDP-A series incubators that do not employ any cooling components, ZHICHENG provides the users with an affordable alternative that tailors to their needs. The ZXDP-A series incubators deliver all of the features such as advanced microprocessor controller, excellent heat circulation, over-and undertemperature alarm, temperature "ramp and soak" cycles, inner glass door, large LCD screen, weekly programmer. Due to the lack of any cooling components, the ZXDP-A series incubators run almost silently during operation, more than that, the incubators are the most energy efficient, they consume roughly half the electricity than the compressor-driven cooled incubators. The ZXDP-A series incubators are available in the capacity ranging from 50L to 270L. Standard warranty for these incubators is 1 year, but we can agree to offer extended warranty period to 2 or 3 years as desired by you, at an extra charge, just let us know.



  (Download CE Certificate)

Specifications


Model

ZXDP-A2050

ZXDP-A2080

ZXDP-A2120

ZXDP-A2160

ZXDP-A2270

Capacity (Volumn)

50L

80L

120L

160L

270L

Performance

Heated only

Controller

P.I.D microprocessor

Temperature Range

ambient +5°C to 60°C

Temperature Set Resolution

±0.1°C

Temperature Uniformity

±0.5°C~1°C

Airflow

Forced-air circulation

Timer (minutes)

1~999

Setting

Digital

Display

LCD

Operating modes

Manual, Programmable mode

Platforms Included

2

Inner glass door

Installed as standard

Functions

Auto-diagnostics, over-and undertemperature alarm, relay for heating cutoff, electric leakage protection, real time clock, auto-and delayed start, weekly programmer, non-volatile memory.

Interior Dimension

350x350x410
mm

400x400x500
mm

450x450x600
mm

500x500x650
mm

600x550x820
mm

Exterior Dimension

470x465x760
mm

520x515x850
mm

570x565x950
mm

620x615x1000
mm

720x665x1170
mm

Power (W)

350

400

500

500

700

Net Weight (Kg)

33

40

51

57

90

Electricity

AC220~230V 50/60Hz

Approval

CE marked (Download CE certificate)

Warranty

1 Year or more

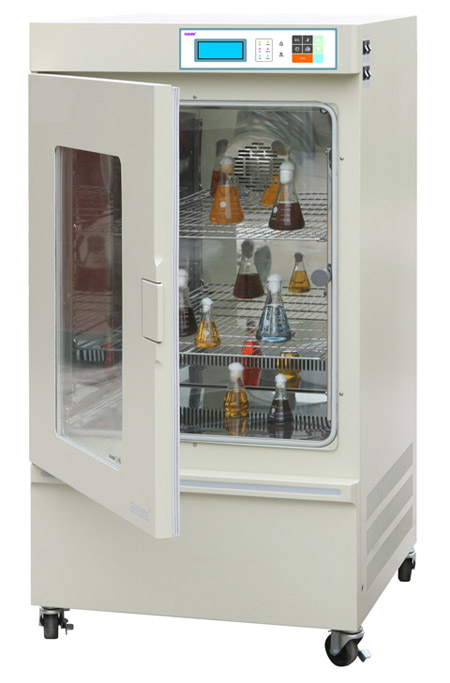

ZXSD-A Series
ZXSR-Series (New)
Cooled Incubators

ZXSD-A series incubators are designed to meet a variety of advanced experimental needs ranging from B.O.D determination to incubation of microorganisms cultures, preservation of samples, determination of enzymatic activities, growth of bacteria, yeast, insect, plant cells and all those applications that require tight temperature control. The compressor-cooled incubators offer you rapid temperature changeover between heating and cooling in ramp operations, 9 programs can be defined and stored in the memory for running multiple "ramp and soak" cycles, or for just running at one temperature setpoint for a given time and then switching automatically to another temperature setpoint for another given time, thus you can easily edit a temperature profile for automatic incubation over the weekend, or let the incubator place your cultures in metabolic status until you are ready to attend to them. This means incredible convenience and functionality, making the incubator ideal for many lab situations and research applications.



Features:

1. Advanced P.I.D microprocessor control
2. Forced-air circulation
3. Compressor-cooled
4. Intelligent defrosting function
5. Auto-diagnostics with error messages
6. Real-time clock & timer
7. Delayed heating start and stop function
8. Audible and visible alarm on over-and undertemperature
9. Manipulation proof to children and outsiders.
10. Relay for immediate heating cutoff in case of fault
11. Non-volatile memory retains preset parameters.
12. Large LCD display for easy digital setting and fast readout
13. Fluorescent lamp installed as standard
14. Inner glass door installed as standard
15. Access port for external sensors
16. See-through window provides complete visibility.
17. Cleaning is easy due to SUS304 mirror-finished stainless steel interior.
18. Servicing is easy due to modular structure construction.
19. Extra shelves available
20. CE Conformance (Download CE Certificate)

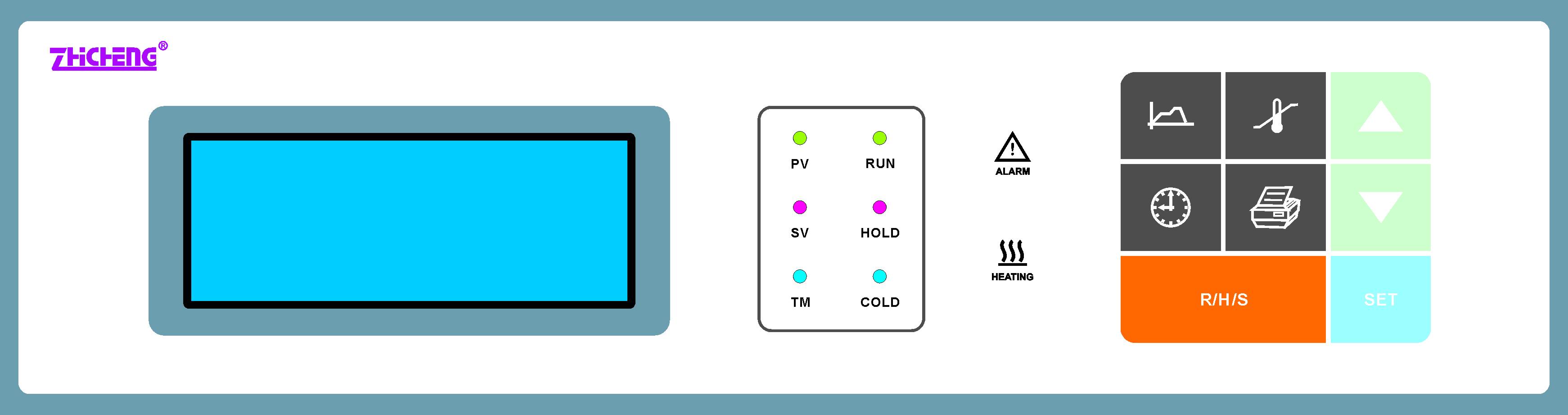

Large LCD Display



Specifications

Model

ZXSD-A1090

ZXSD-A1160

ZXSD-A1270

ZXSD-A1430

Capacity (Volumn)

90L

160L

270L

430L

Controller

P.I.D microprocessor

Temperature Range

ambient-20 to 65°C (or 4~65°C)

Minimum temperature setpoint



4°C

Temperature Set Resolution

±0.1°C

Temperature Uniformity

±0.5~1°C

Temperature Fluctuation

±0.5°C

Timer

1~999 minutes

Airflow

Forced-air

Refrigeration

Compressor-cooled, R134a

Defrosting

Automatic

Operation Modes

Manual, Programmble Mode

Setting

Digital

Display

LCD

Shelf numbers

2

Access Port

50mm, for external sensors.

Inner glass door

Installed as Standard

Illumination

Fluorescent lamp

Functions

Auto-diagnostics, over-and undertemperature alarm, relay for heating cutoff, electric leakage protection, real time clock, auto-and delayed start, weekly programmer, non-volatile memory.

Interior Size mm

400x400x550

500x500x650

600x600x750

700x645x950

Exterior Size mm

530x540x1260

630x640x1360

730x740x1460

830x785x1660

Power

600W

700W

850W

1200W

Net Weight (Kg)

68

98

108

130

Electrical Connection

AC220~230V 50/60Hz

Approval

CE Marked (download CE certificate)

Warranty

1 Year or more



Low Temperature Cooled Incubators (without inner glass door)



Model

ZXSP-A0160

ZXSP-A0270

ZXSP-A0430

Capacity (Volumn)

160L

270L

430L

Controller

P.I.D microprocessor

Temperature Range

-10~65°C

Minimum temperature setpoint



-10°C

Temperature Set Resolution

±0.1°C

Temperature Uniformity

±0.5~1°C

Temperature Fluctuation

±0.5°C

Timer

1~999 minutes

Airflow

Forced-air

Refrigeration

Compressor-cooled, R134a

Defrosting

Automatic

Operation Modes

Manual, Programmble Mode

Setting

Digital

Display

LCD

Shelf numbers

2

Access Port

50mm, for external sensors.

Inner glass door

None

Illumination

Fluorescent lamp

Functions

Auto-diagnostics, over-and undertemperature alarm, relay for heating cutoff, electric leakage protection, real time clock, auto-and delayed start, weekly programmer, non-volatile memory.

Interior Size mm

500x500x650

600x600x750

700x645x950

Exterior Size mm

650x680x1360

750x780x1460

850x820x1660

Power

750W

900W

1250W

Net Weight (Kg)

98

140

185

Electrical Connection

AC220~230V 50/60Hz

Approval

CE Marked (download CE certificate)

Warranty

1 Year or more

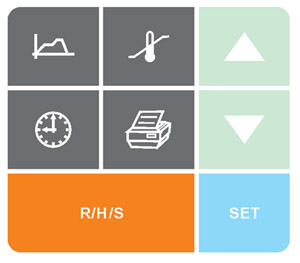

65K colors, 4.3 inch touch screen controller for easy and intuitive operation

The cooled incubators can also be equipped with an user-friendly interface with a modern design intuitive touch screen controller for easy operation. With the 65K colors, 4.3 inch touch screen controller, controls for entering the setpoints becomes exceptionally easy, display is bright and clearly visible from all angles.

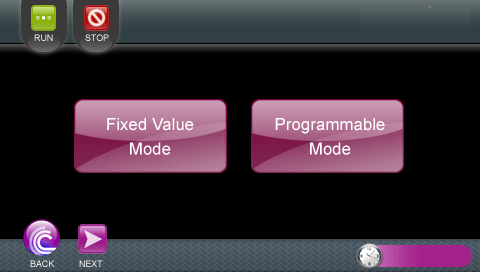

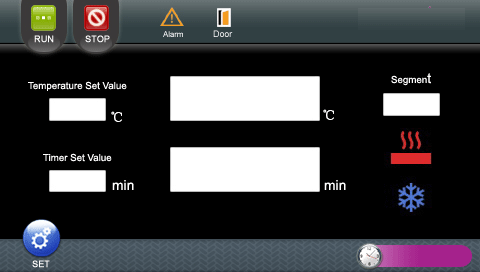

Default Setting Running Mode Options

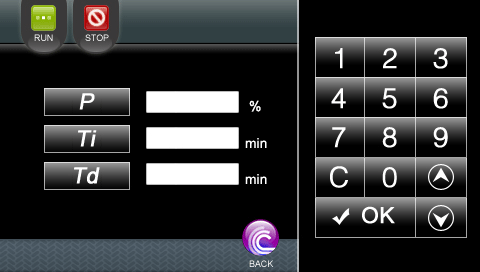

P.I.D Setting Timer Setting

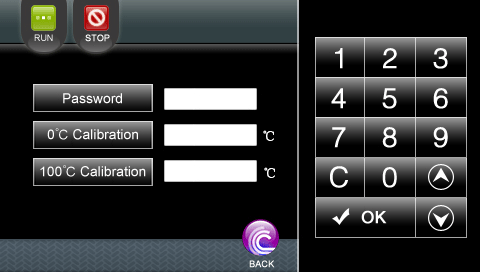

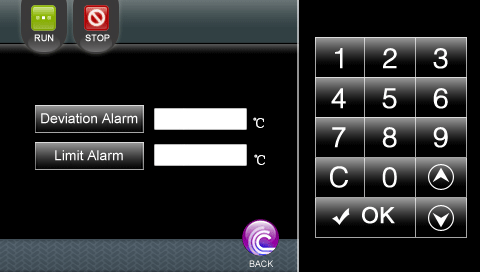

Alarm Setting Temperature Setting

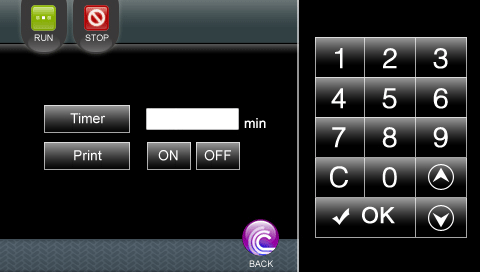

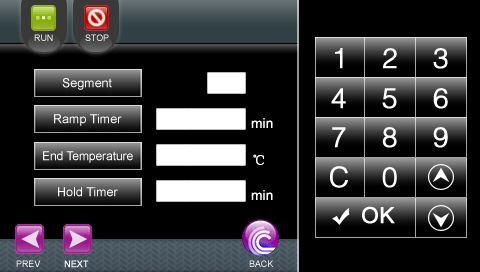

Ramp & Soak Setting Printer Setting
