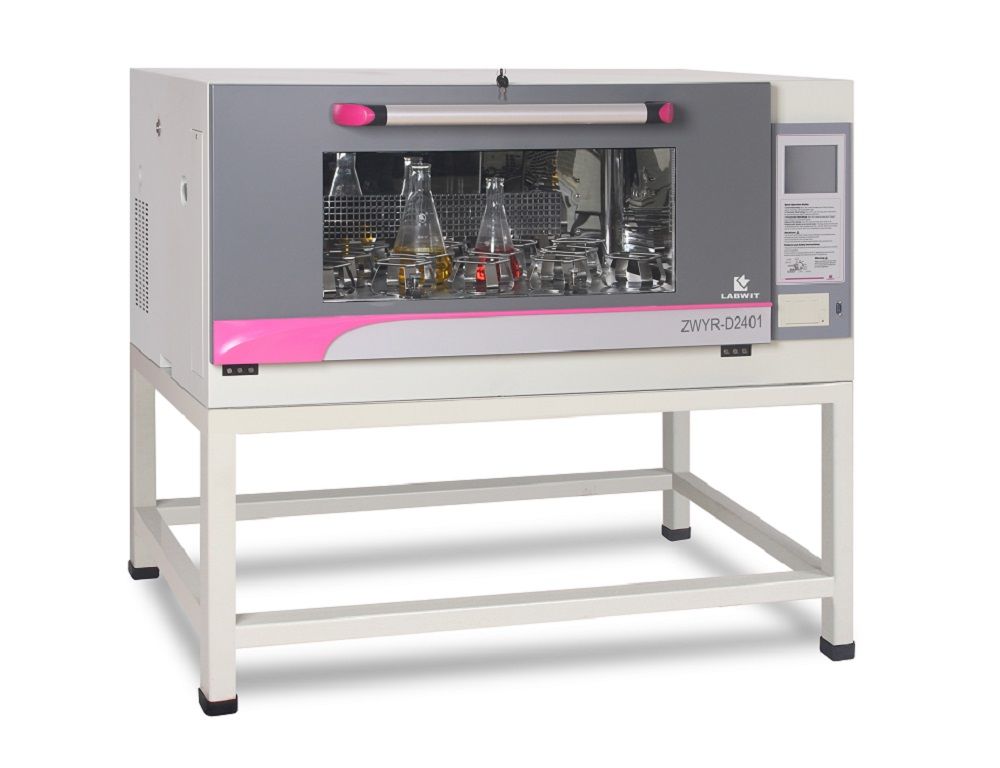

	Model: ZWYR-D2401 stackable incubator shaker, one stack. Controller: PID microprocessor，Touch Screen Shaking Mode: Orbital Temperature Range: 4-60°C at ambient 25°C Refrigeration: CFC-free, R134 Temperature Set Resolution:±0.1°C Temperature Uniformity:±1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 50mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Running mode: fully programmable with 9 programs, 18 steps. Built-in Printer: included as standard Capacity/chamber: 100mlx65 or 250mlx38, 500mlx30 or 1000mlx18 or 2000mlx11 Platform Size: 800x430 mm Platform included: 1　　　Chamber Size: 920x532x393mm Volumn: 192L　　　　　　 Motor Power: 1200W Electrical Requirement: AC 220V 50/60Hz Net/Gross Weight: 250Kg/290Kg External Dimension: 1300x926x732cm Approval: CE marked

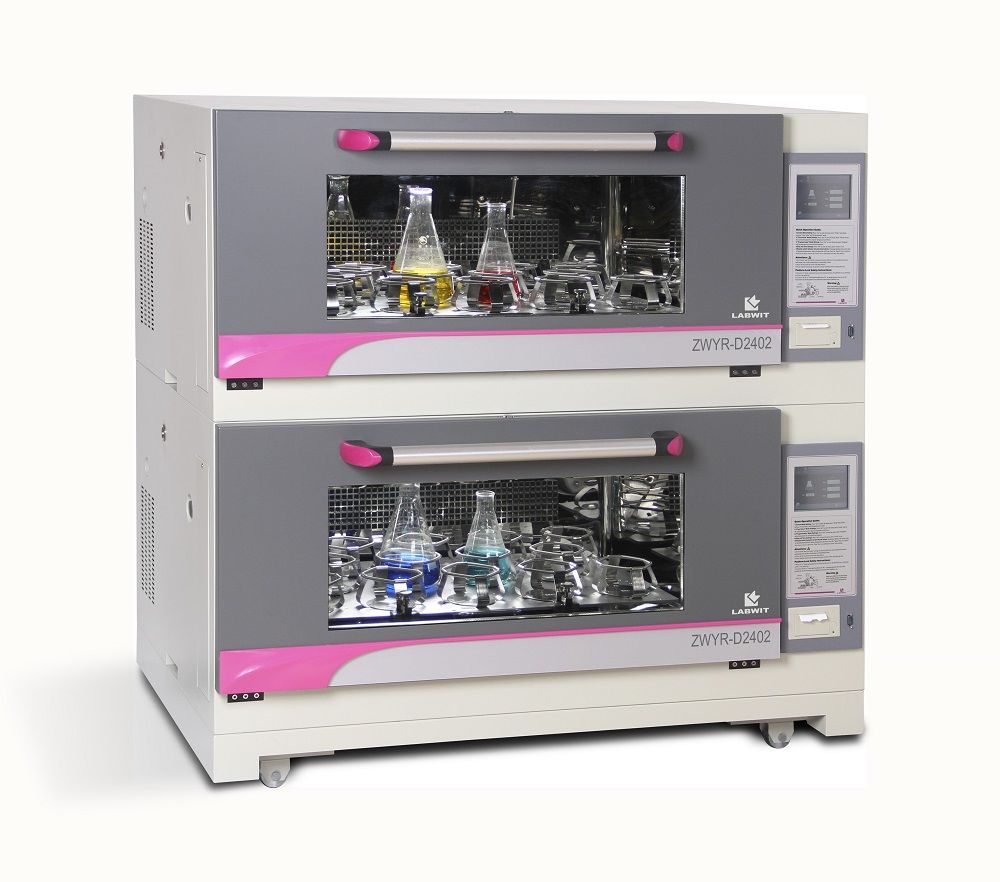

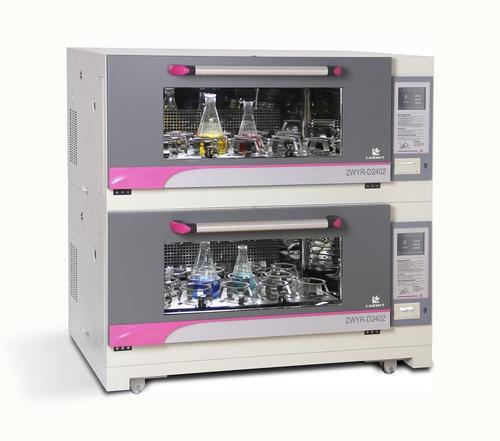

	Model: ZWYR-D2402 stackable incubator shaker, two stacks. Controller: PID microprocessor Setting/Display: Touch Screen Shaking Mode: Orbital Temperature Range: 4-60°C at ambient 25°C Refrigeration: CFC-free, R134 Temperature Set Resolution:±0.1°C Temperature Uniformity:±1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 50mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Running mode: fully programmable with 9 programs, 18 steps. Built-in Printer: included as standard Capacity/each chamber: 100mlx65 or 250mlx38, 500mlx30 or 1000mlx18 or 2000mlx11 Platform Size: 800x430 mm 　 Platforms included: 2 Chamber Size: 920x532x393mm/each chamber Volumn: 192L/each chamber Motor Power: 2400W 　 Electricity: AC 220V 50/60Hz Net/Gross Weight: 430Kg/500Kg External Dimension: 1300x926x1312cm Approval: CE marked

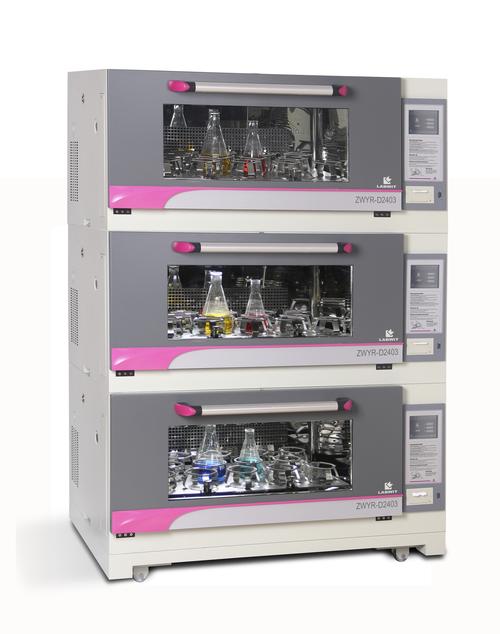

	Model: ZWYR-D2403 stackable incubator shaker, three stacks. Controller: PID microprocessor, Touch Screen Shaking Mode: Orbital Temperature Range: 4-60°C at ambient 25°C Refrigeration: CFC-free, R134 Temperature Set Resolution:±0.1°C Temperature Uniformity:±1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 50mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Running mode: fully programmable with 9 programs, 18 steps. Built-in Printer: included as standard Capacity/each chamber: 100mlx65 or 250mlx38, 500mlx30 or 1000mlx18 or 2000mlx11 Platform Size: 800x430 mm 　Platforms included: 3 Chamber Size: 920x532x393mm/each chamber Volumn: 192L/each chamber Motor Power: 3600W Electrical Requirement: AC 220V 50/60Hz Net/Gross Weight: 630Kg/730Kg External Dimension: 1300x926x1927cm Approval: CE marked

Consisting of high performance, heavy duty, single eccentric, counterbalance drive mechanism, the stackable shaking incubator is designed for lifetime durability. It ensures smooth and even shaking movement anywhere on the platform, regardless of load distribution of culturing vessels. The shaking diameter can be changed in the range of 0~50mm by altering the position of the eccentric bearing. 5mm shaking diameter is usually recommended for microtitre plates, 25mm is universally accepted for the majority of applications, while 50mm is mostly used for large flasks more than 2L. By switching between different shaking diameters, customers can adjust the shaking incubator’s characteristics to suit their diversified experimentations.

Surrounded by the high density polyurethane foamed-in-place insulators from all sides, the inner chamber achieves highly efficient insulation. Precise PID Control together with an efficient circulating fan provides homogenous temperature distribution that guarantees reproducible cultivation results.

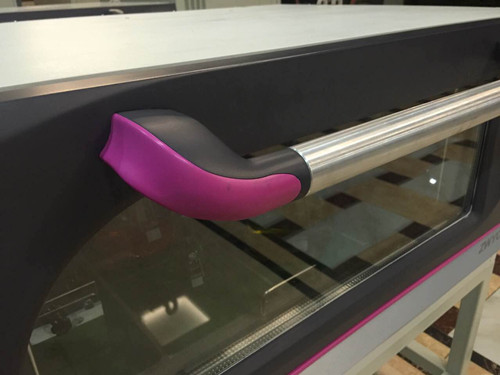

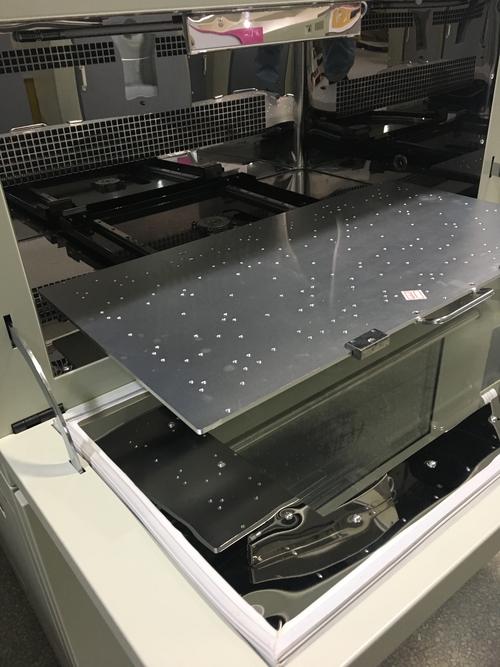

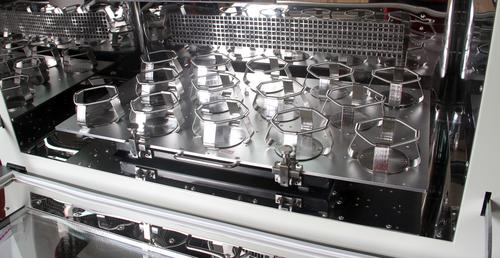

The cleverly designed drop-down door and pull-out tray helps to make access easy to your cultivation vessels, the claw-like platform safety latches, slow soft start and exceptionally quiet operation create a friendly working environment in your lab.

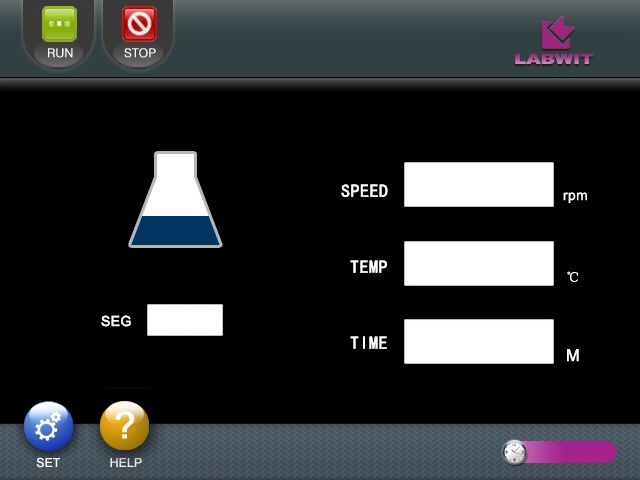

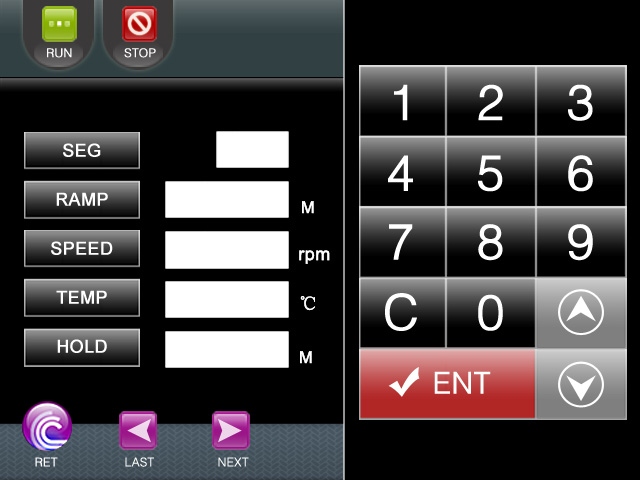

The shaking incubator offers the choice of steady running mode and programable running mode to suit diversified user experimentation requirements. A maximum of 18-step, 9 programs can be stored for convenient retrieval, each program can be repeated up to 99 cycle times.

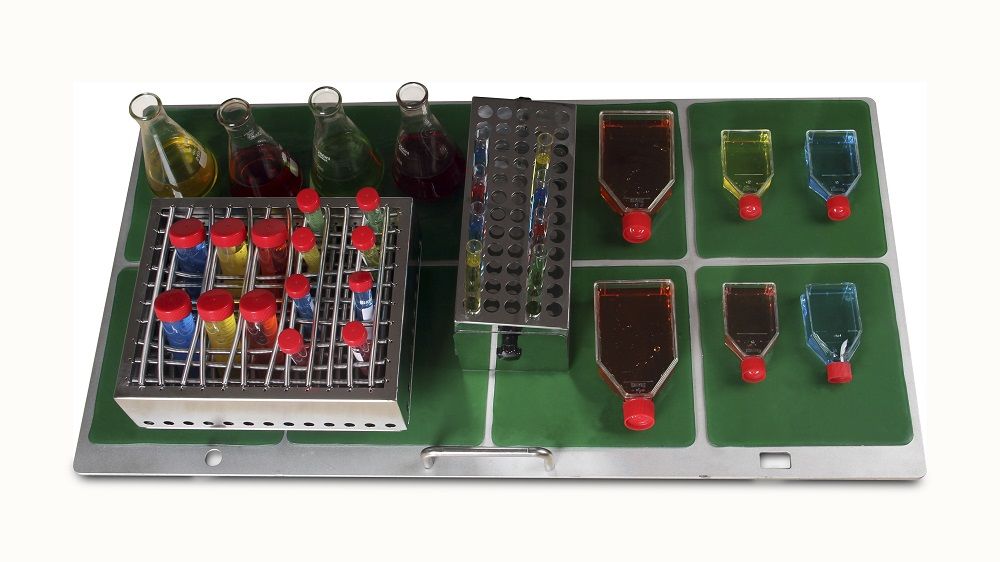

The new stackable shaking incubators offer more capacity, a maximum of 6x5L flasks is possible to be loaded adequately in the cabinet by using the green sticky mat. Up to three cabinets can be stacked together for greater shaking capacity, stacking is simple and easy, without the need for special tools or stacking kits. Each cabinet can be operated independently and can be individually configured to meet your particular experimentation requirements.

The Newly released ZWYC-290A Ultimate-Cell Shaking Incubator brings leading edge technology to your cell culturing applications, it comes with plenty of latest features to meet today's demanding research requirements. In addition to its wide speed range settings, it offers a high degree of temperature precision as well as many other advanced functions such as CO2 regulation, humidification, LED lighting, each of which can be individually customized to meet your particular research requirements.

This combination of excellent temperature control and advanced insulation benefits the culturing samples greatly. The cleverly designed drop-down door and pull-out tray helps to make access easy to the cultivation vessels, the claw-like platform safety latches, slow soft start and exceptionally quiet operation create a friendly working environment in your lab. An access port for external sensors is included so that you can easily check the inner conditions of the cabinet. The UV light is also included as standard for sterilization purpose.

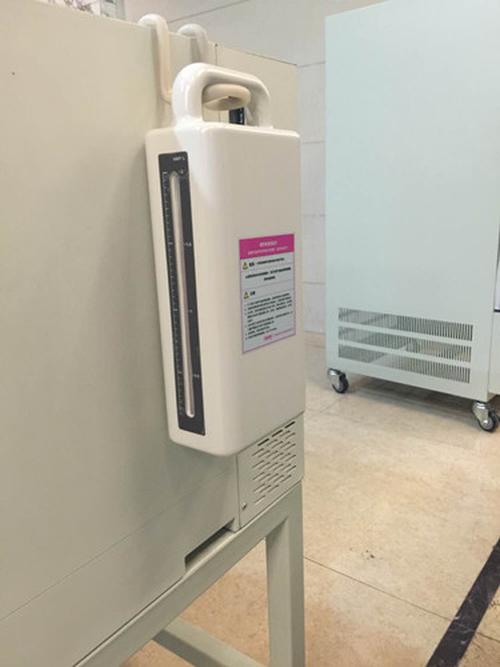

To simplify maintenance the shaking incubator is equipped with an external humidity water reservoir and a peristaltic pump for easy replenishment of water. Compared to a traditional removable humidity water pan, this convenient water reservoir greatly eases the culturing activity and avoid the possibility of any contamination. The exterior water reservoir stands beside the shaking incubator and is connected to it by a flexible tube for water supply. Precise PID control with a microprocessor ensures exact regulation of the humidity, the humidity setting is controlled directly from the incubator’s intuitive touch screen, the achieved relative humidity (RH) is clearly shown on the screen display. The humidification is achieved by the high temperature direct steam up to 140 degree.C through electrical heating before it is injected to the internal chamber, and thus is effectively sterilized once more. A highly responsive humidity probe continuously measures the humidity level with automatic water refill. This innovative humidity system can effectively reduce evaporations during cultivation and prevent the samples from desiccation. It provides fast recovery rate and is ideal for applications require flexibility and precise monitoring of the humidity levels.

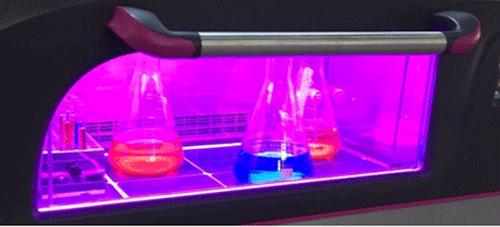

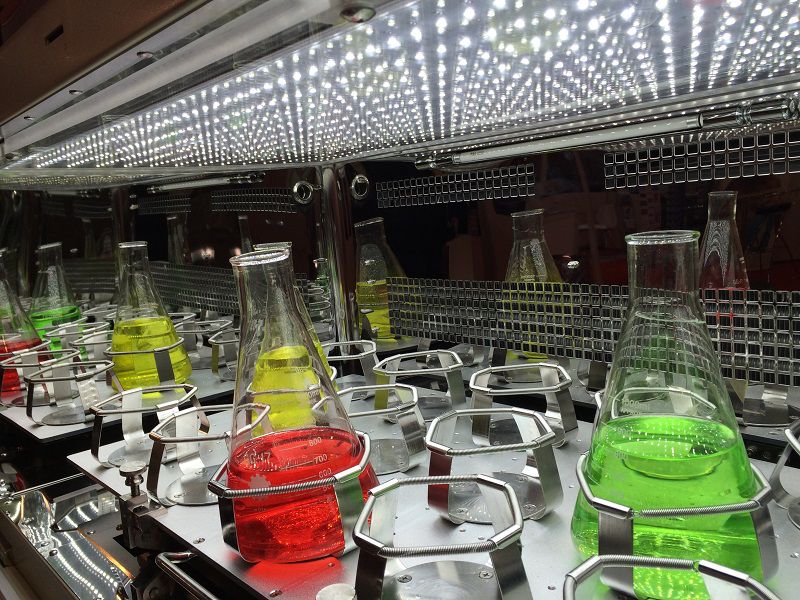

For the culture of photosynthetic organisms such as algae, plant cells and photosynthetic bacteria, The unit can be upgraded with dual colour LED lighting control kit, each colour of lighting can be independently controlled and programmed to simulate day/night cycles.

The combinations of Red, Blue, Orange and White LED lights have been formulated to provide a beneficially synchronized effect on the plant. The Blue LED lights (430~450nm) provide peak chlorophyll absorption in the plant, promoting vegetative growth. The Red and Orange LED lights (640~660nm) cause large absorption of nutrients by chlorophyll, most critically influencing the photosynthesis process, which in turn promotes budding and flowering. White LED lights are useful for your plants to absorb other lighting spectrums as supplementary like natural sunlight.

Model	ZWYC-290A
Drive	Single eccentric, Penta-drive system.
Controller	P.I.D microprocessor
Performance	Heated and Refrigerated
Temperature Range	ambient-20°C to 60°C (or 4~60°C at RT 25 degree.C)
Setting	Digital
Display	4.3 inch, 65K color, Touch Screen
Temperature Set Resolution	±0.1°C
Temperature Uniformity	±1°C@37°C
Airflow type	Forced-air circulation
Refrigeration	Automatic, compressor-cooled.
Defrosting	Automatic. Manual defrosting is available.
Shaking Mode	Orbital
Orbital Diameter (shaking throw) mm	Ф0~50
Shaking Speed	30-300 rpm (±1rpm)
Programs	9 programs, 18 steps.
Chamber Numbers	1 Unit
Capacity	Support standard Erlenmeyer flasks of 100mlx50 or 250mlx37 or 500mlx30 or 1000mlx18 or 2000mlx8
Timer (minutes)	0~9999
Platform Size	850x450mm
Platform numbers	1, included
Standard features	Built-in printer, UV light, illumination light, access port for external sensors.
Volumn	225L
Internal Dimension	940x570x420mm
Electricity	220~230V 50/60Hz
Motor Power	1150W
Net/Gross Weight	250/290Kg
External Dimension	1320x938x586mm
Accessory, support stand	Must be ordered separately.
Sticky mat	Must be ordered separately.
Humidity Control	Optional
Humidity Range	40~80%RH
Humidity Set Resolution	±1%RH
Humidity Uniformity	±3%RH
Humidity Sensor Type	Capacitive
Humidification Method	Direct Steam Injection
CO2 Control	Optional
CO2 sensor type	NDIR, Infrared
CO2 Range	0~20%
CO2 Set Resolution	±0.2%
LED Light	Optional
Light Type	50% Red, 50% Blue.
Spectrum Wavelength	Red: 640~660nm, Blue: 430~450nm.
Light Intensity	13000 Lux (Red 6500 Lux, Blue 6500 Lux)
