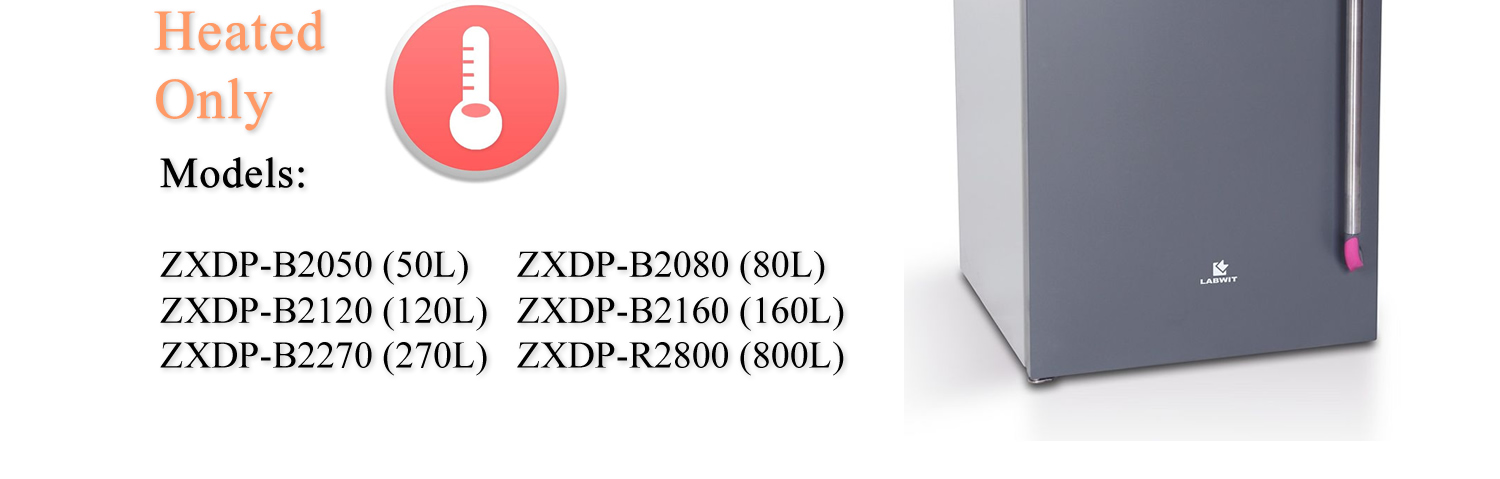

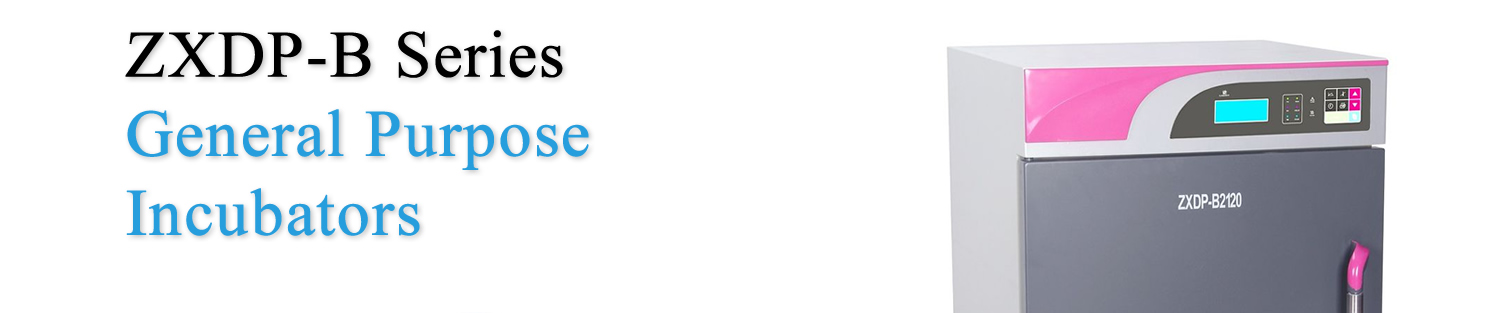

The classic ZXDP-B Series general purpose incubators are designed for a wide variety of lab applications that requiring a constant thermal environment, typical applications including biochemical studies, microbiology, histology, bacteriology, pharmaceutical stability testing, food processing quality control, hematological studies, etc. Consisting of highly efficient heating elements combined with a gentle forced-air fan that provides horizontal airflow, the incubators deliver superior temperature uniformity within the entire chamber.

A precise PID microprocessor controller maintains tight temperature control in the range of ambient+5°C to 60°C. An independent safety thermostat protects the incubator and its culturing samples in the event of overheat. An audible and visible alarm is incorporated to warn of overtemperature deviations, and user-friendly sealed LCD control panel allows easy digital setting and fast readout.  The incubators can be operated either in Steady Status Running Mode or in Programmable Running Mode. In the programmable running mode, a maximum of 9 programs 18 steps can be edited and stored in the memory. Steps can be set for running multiple "ramp and soak" cycles, or for just running at one temperature for a given time and then switching automatically to another temperature for another given time. Each program can be made to repeat from 1 to 99 times automatically.

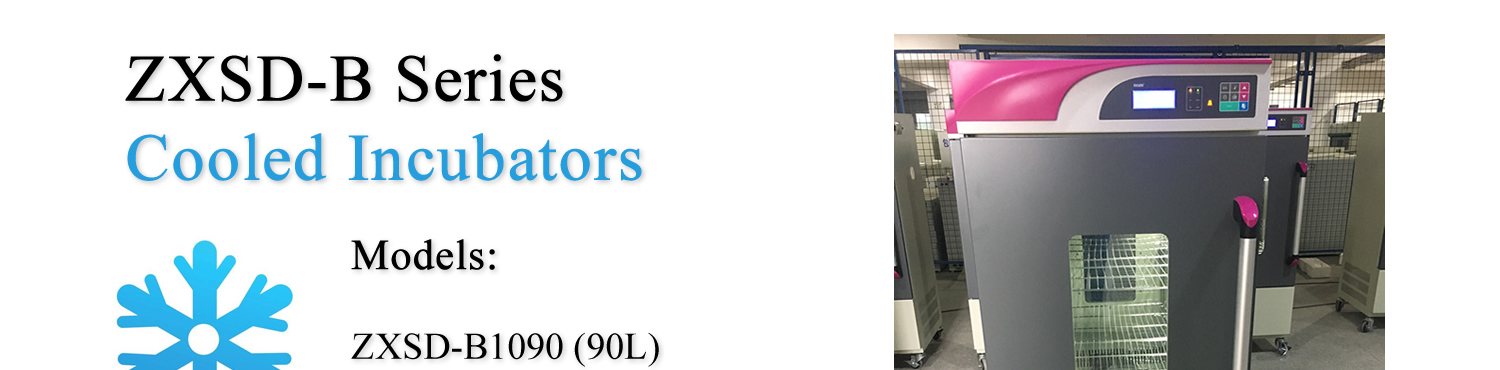

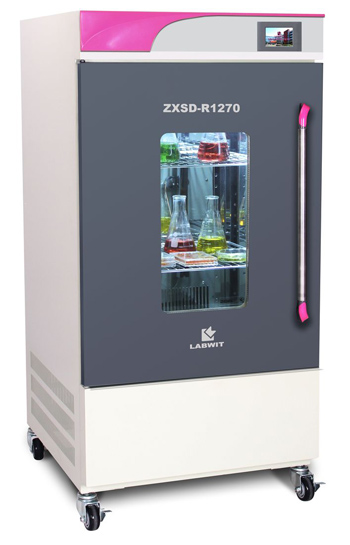

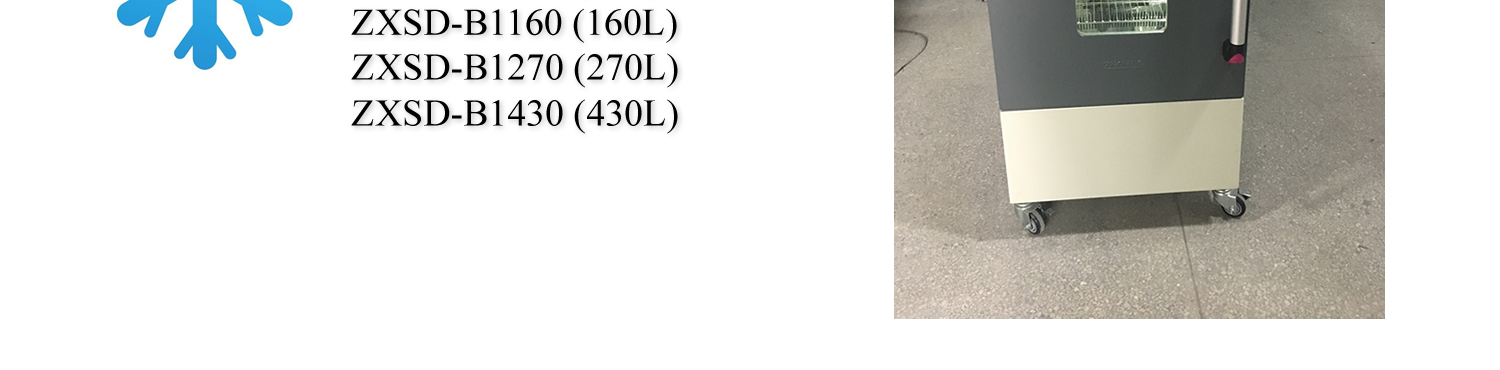

ZXSD-B series incubators are sleek in design and ensure reliable temperature controls in the range of 4~65°C (or ambient-20°C to 65°C at room temperature 25°C). The incubators are ideal for a variety of advanced research application needs ranging from B.O.D determination to incubation of microorganisms, preservation of samples, determination of enzymatic activities, growth of bacteria, yeast, insect, plant cells and all those applications that require tight temperature control. The incubators incorporate a highly efficient heater with PID microprocessor temperature control combined with gentle forced-air circulation which ensures even temperature distribution and guarantees reproducible culturing results. Moreover, the incubators are equipped with a hermetically-sealed compressor that runs at a low noise and provides automatic refrigeration and defrosting at a specified time. Manual defrosting is also available.

The incubators offer programmable running mode or steady status running mode for selection. In the programmable running mode, a maximum 18-step, 9 programs can be edited and stored for running multiple ramp and soak cycles or for convenient retrieval.

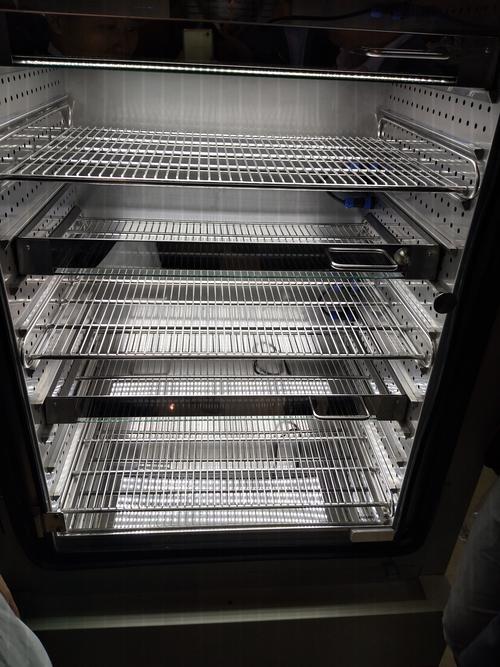

An inner door made of tempered safety glass allows a clear view of the samples without disturbing the internal culturing atmosphere. The outer door has a silicone gasket that provides tight seal to the chamber and keeps the heat loss to a minimum. An access port at the left side is included for use of external temperature probes. The interior chamber is made of mirror-finished SUS304 stainless steel with rounded corners that allows easy cleaning. All the models are supplied with castor wheels for easy movement within the lab.

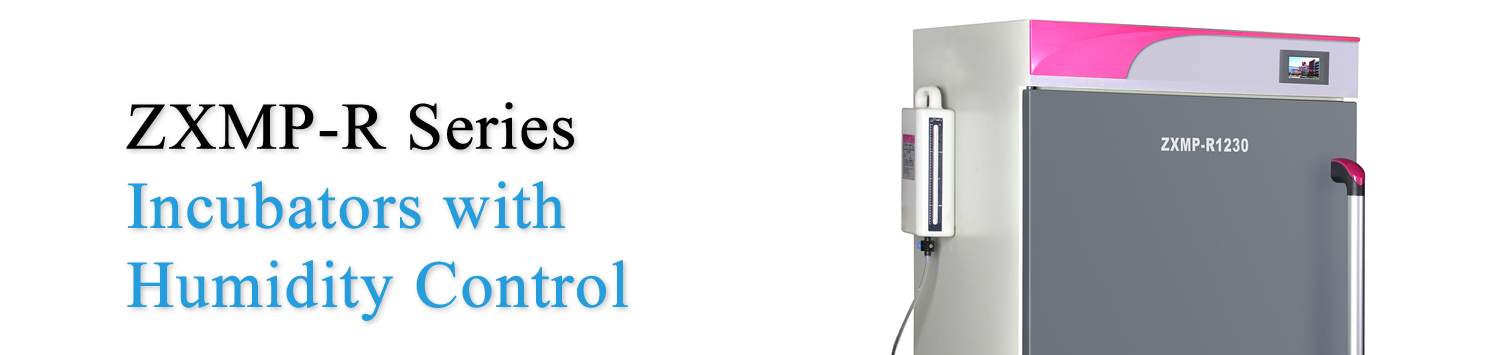

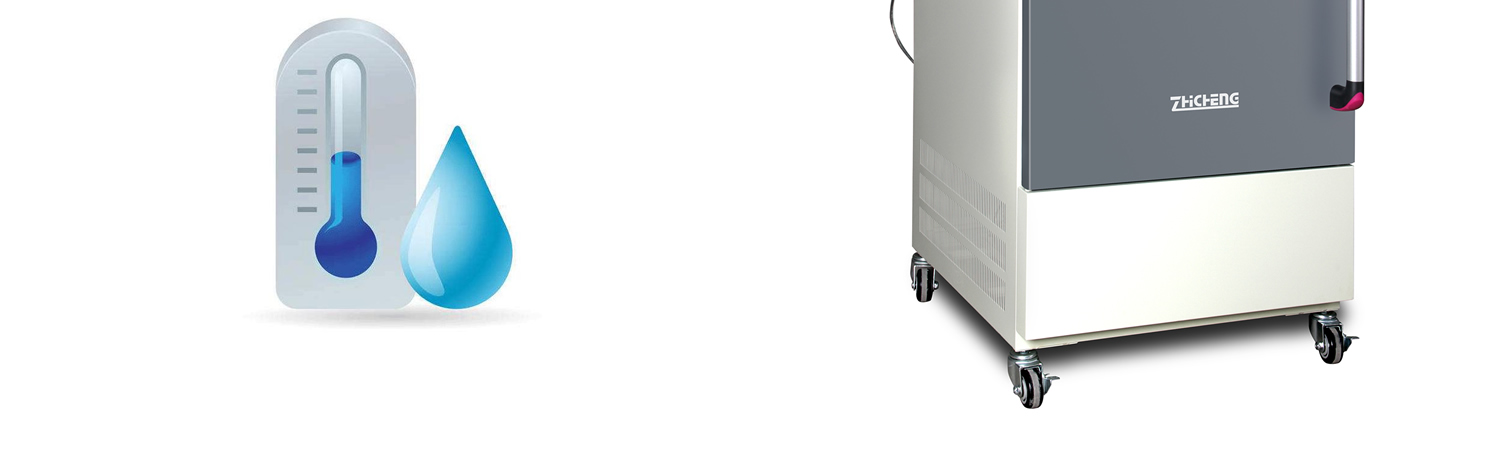

Maintaining the humidity level inside the incubator is a crucial factor for quite a number of successful culturing applications, to this end, we are pleased to introduce the ZXMP-R series incubators which are designed to instantly deliver desired humidity level to the incubators. The incubators feature our unique patented direct-heating, on-demand vapor humidification technology, the vapor humidification is also enhanced by the gentle fan-assisted air circulation. The humidification system integrates a convenient exterior water reservoir to simplify maintenance, the water reservoir stands beside the incubator and is connected to it by a flexible tube for water supply, eliminating the water pan and allow replenishment of water without disrupting the culturing activity. Humidity settings are controlled directly from the incubator's intuitive touch screen. The 10-step program allows you to set temperature, humidity profiles which can be repeated up to 999 times.

Models

ZXMP-R1150

ZXMP-R1230

ZXMP-R1430

Capacity (Volumn)

150L

230L

430L

Controller

P.I.D microprocessor

Setting/Display

Touch Screen

Temperature Range

0°C to 65°C

Temperature Set Resolution

±0.1°C

Temperature Uniformity

±1°C (at ambient 37°C)

Temperature Fluctuation

±0.5°C (at ambient 37°C)

Humidity Range (RH)

40~90%

Humidity Set Resolution

0.1%

Temperature Fluctuation

±3%

Timer

0~9999 minutes

Airflow

Forced-air Circulation

Refrigeration

Compressor-cooled, R134a

Defrosting

Automatic

Operation Mode

Steady Status Running Mode & Programmable Running Mode

Programs

9 programs, 18 steps.

Shelf numbers

Includes 2 shelves as standard. Maximum 4 pieces.

Access Port

Ф50mm, for external sensors.

Inner glass door

Included as standard

Functions

Auto-diagnostics, sensor failure alarm, over-temperature alarm, relay for heating cutoff, over-current & electric leakage protection, real time clock, non-volatile memory.

Interior Size mm

500x450x650

600x545x750

700x645x950

Exterior Size mm

628x728x1382

728x828x1482

828x895x1682

Power

1500W

1600W

2500W

Net weight (Kg)

105

130

175

Electrical Connection

AC220~230V 50/60Hz

Approval

CE Marked

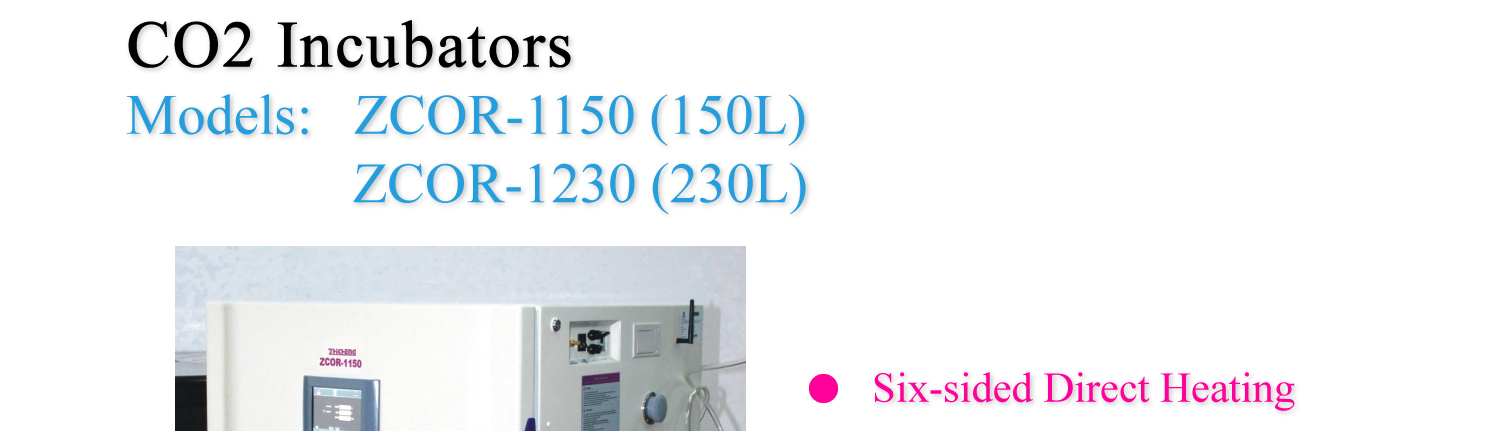

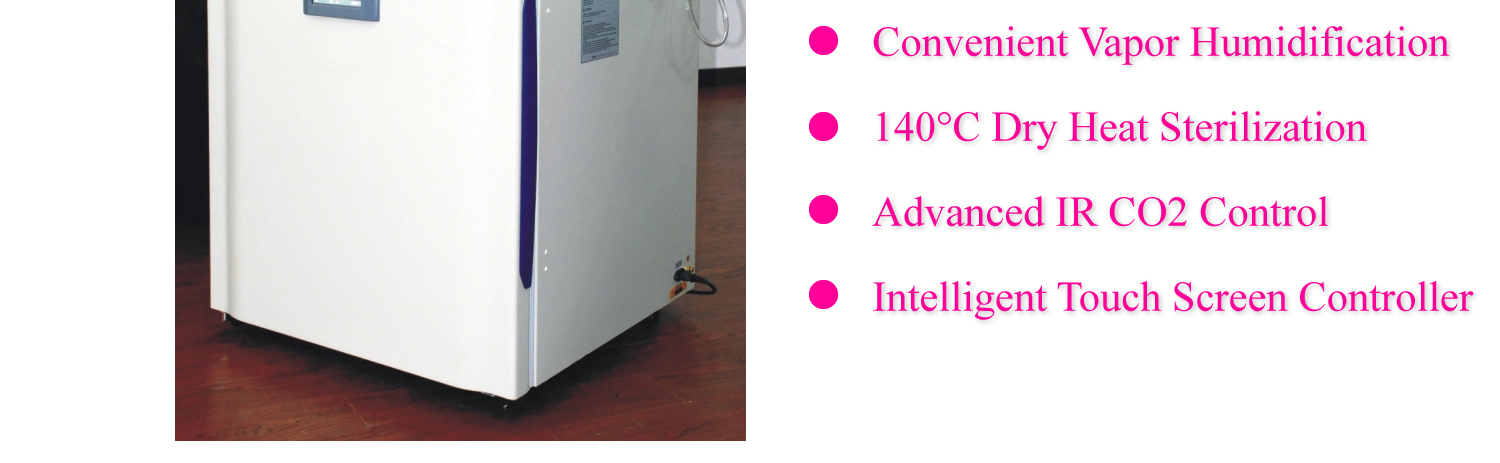

The CO2 Incubator delivers a high level of performance for in-vitro cell culture environment. Its stackable design takes up less space in the lab, it features the latest six-sided direct heating technology combined with air-jacket design system, providing precise temperature and CO2 control with proven 140°C dry heat sterilization cycles. The incubator also features an optional CO2 cylinder switchover system, this system automatically switches from the primary to secondary gas cylinder when a CO2 level drop in the chamber is detected. Left or right hinged door swing options are also available for users upon request.



  Five Key features help you achieve greater research efficiency for your experiments.

Model

ZCOR-1150

ZCOR-1230

Volumn

150L

230L

Heating method

Direct heating combined with air jacket system

Control method

PID microprocessor

Setting & Display

Touch Screen

Temperature Range

Ambient+5 to 60℃

Temperature homogeniety (℃)

≤0.3@37℃

Temperature setting resolution

≤0.2℃

Ambient temperature required

18~30℃

CO2 control method

PID microprocessor

CO2 Range

0~20%

CO2 Accuracy

≤0.2%

CO2 Sensor type

NDIR, Single beam, dual wavelength, self-calibrated.

Humidification method

Traditional 3L water pan, stainless steel.

Humidity Range (RH)

Up to 95%@37℃

Humidity Display Resolution

≤1.0%

Decontamination method

140℃ dry heat sterilization

Filters

CO2 Inlet HEPA filter, in-chamber HEPA filter.

Alarms

Overtemperature alarm, CO2 overshoot alarm, door opening alarm, sensor failure alarm, CO2 shortage alarm, printing failure alarm.

CO2 cylinder switchover

Optional

Reversible Door Swing

Optional, left/right hinged.

Built-in printer

Included as standard

Remote Control

Optional, WiseKonekt kit.

Internal dimension (mm)

603x488x650

680x520x750

External dimension (mm)

720x710x920

717x761x1085

Net/Gross weight (Kg)

120/140

180/210

Shelves

2 pieces

3 pieces

Shelf load/piece (Kg)

10

10

Shelf Size (mm)

530x400

607x432

Electrical Connection

220~240V, 50/60Hz

220~240V, 50/60Hz

Power (W)

1200

1400
