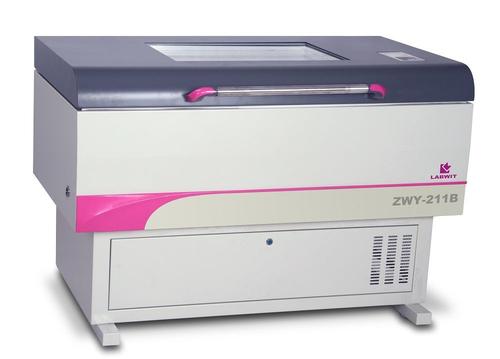

	Model: ZWY-211B Orbital Shaking Incubator Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Control: P.I.D Microprocessor Setting: Digital Display: LCD Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1rpm) Standard Capacity: 500mlx28 Volumn: 168L Max. Capacity: 50mlx82 or 100mlx82 or 250mlx50 or 500mlx37 or 750mlx28 or 1000mlx22 Timer: 0~9999 minutes　　 Platform Size: 920x500 mm Motor Power: 800W　 Electricity: AC220-230V 50/60Hz Net/Gross Weight: 174Kg/214Kg

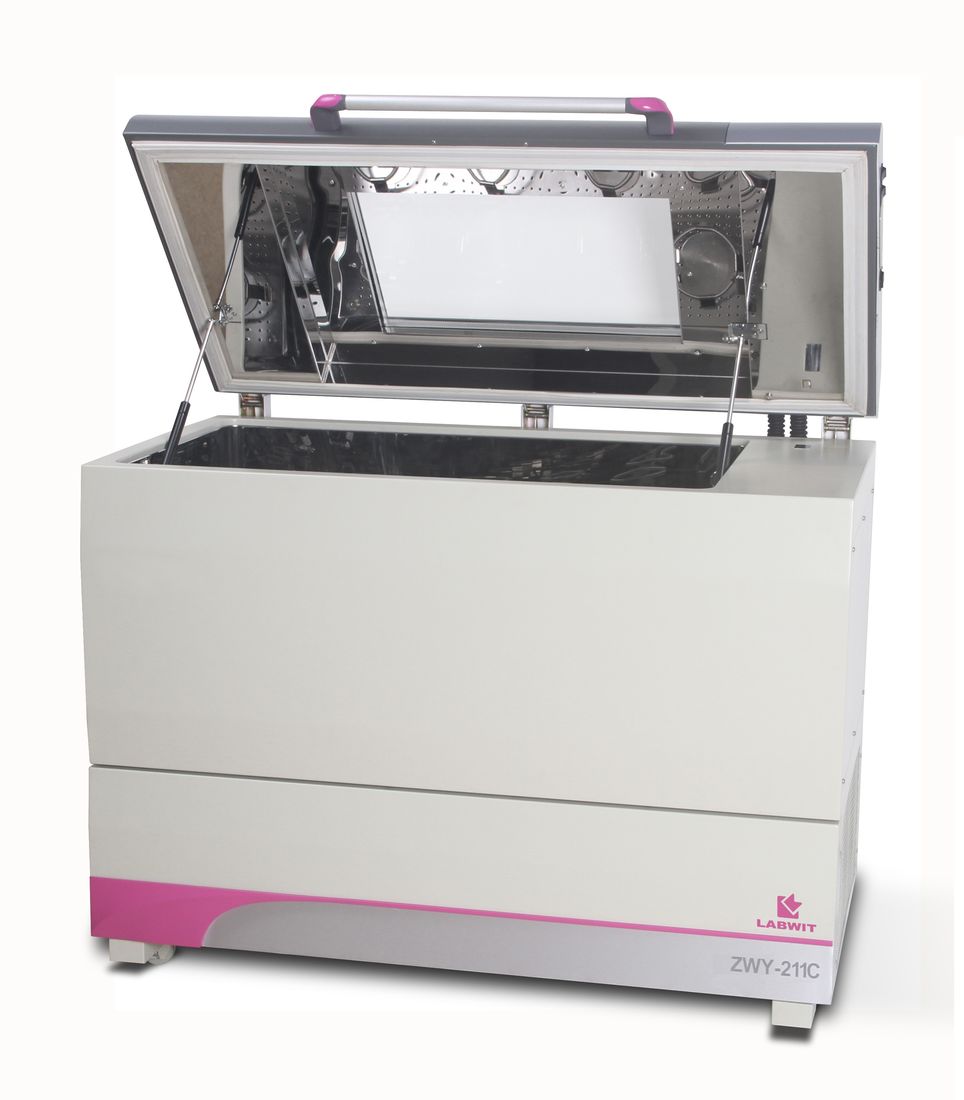

	Model: ZWY-211C Shaking Incubator Shaking Mode: Orbital Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Control: P.I.D Microprocessor Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Setting: Digital Display: LCD Standard Capacity: 2000mlx14 Volumn: 256L Max. Capacity: 50mlx82 or 100mlx82 or 250mlx50 or 500mlx37 or 750mlx28 or 1000mlx22 2000mlx14, 3000mlx8, 5000mlx6 Platform Size: 920x500 mm Platform included: 1 piece Motor Power: 1150W Electrical Requirement: 220-230V 50/60Hz Net/Gross Weight: 183Kg/228Kg Internal dimension: 978x567x468mm External dimension: 1230x770x1010mm Approval: CE marked

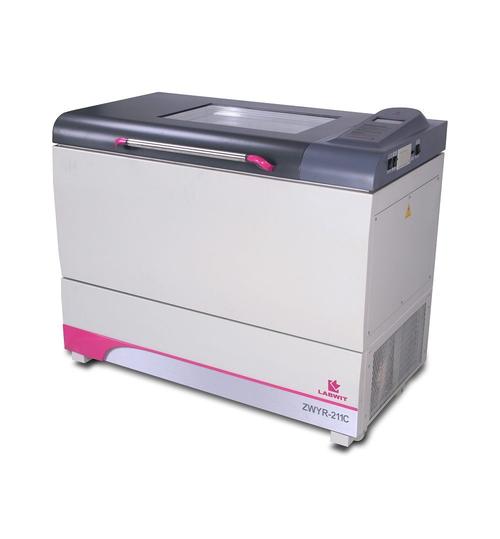

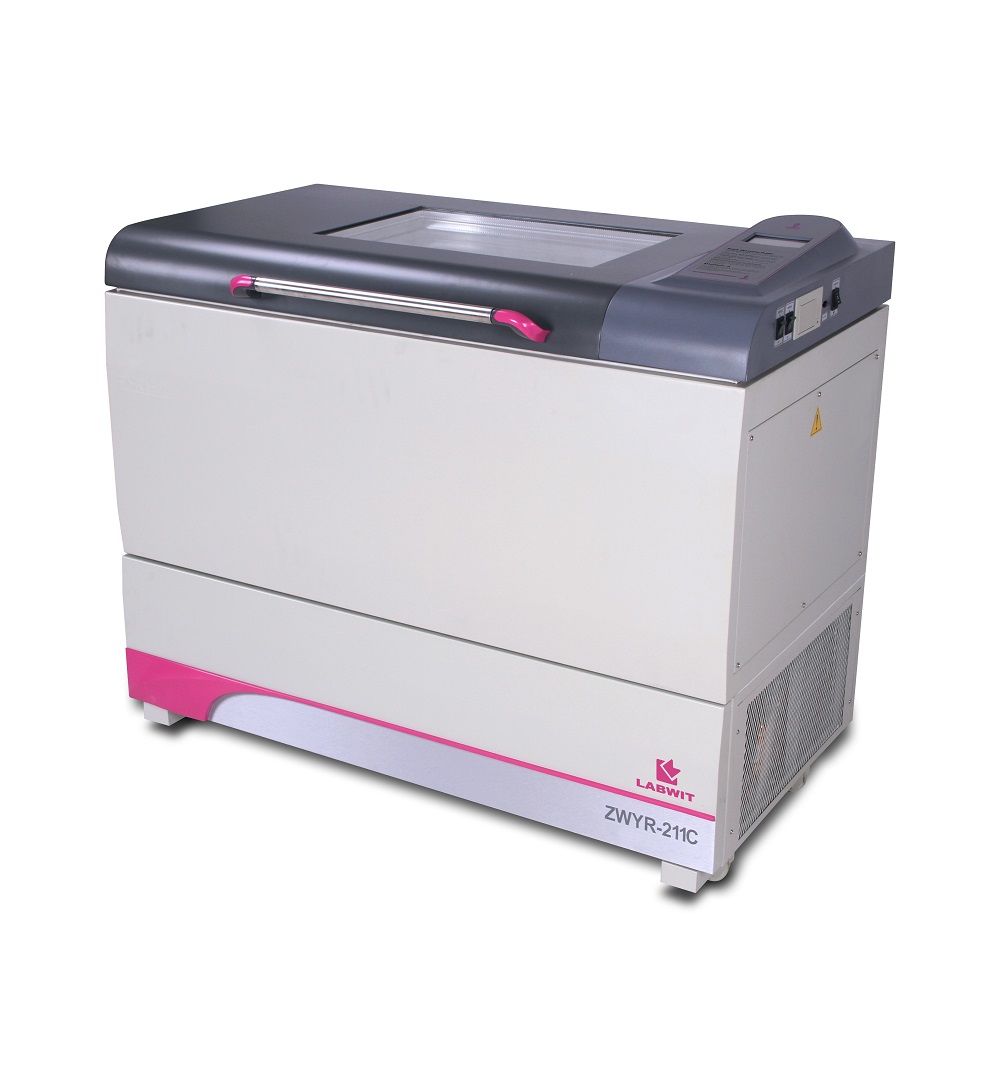

	Model: ZWYR-211C Shaking Incubator Setting/Display: Touch Screen Shaking Mode: Orbital Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Standard Capacity: 2000mlx14 Volumn: 256L Max. Capacity: 50mlx82 or 100mlx82 or 250mlx50 or 500mlx37 or 750mlx28 or 1000mlx22 2000mlx14, 3000mlx8, 5000mlx6 Platform Size: 920x500 mm Platform included: 1 piece Motor Power: 1150W Electrical Requirement: 220-230V 50/60Hz Net/Gross Weight: 183Kg/228Kg Internal dimension: 978x567x468mm External dimension: 1230x770x1060mm Approval: CE marked

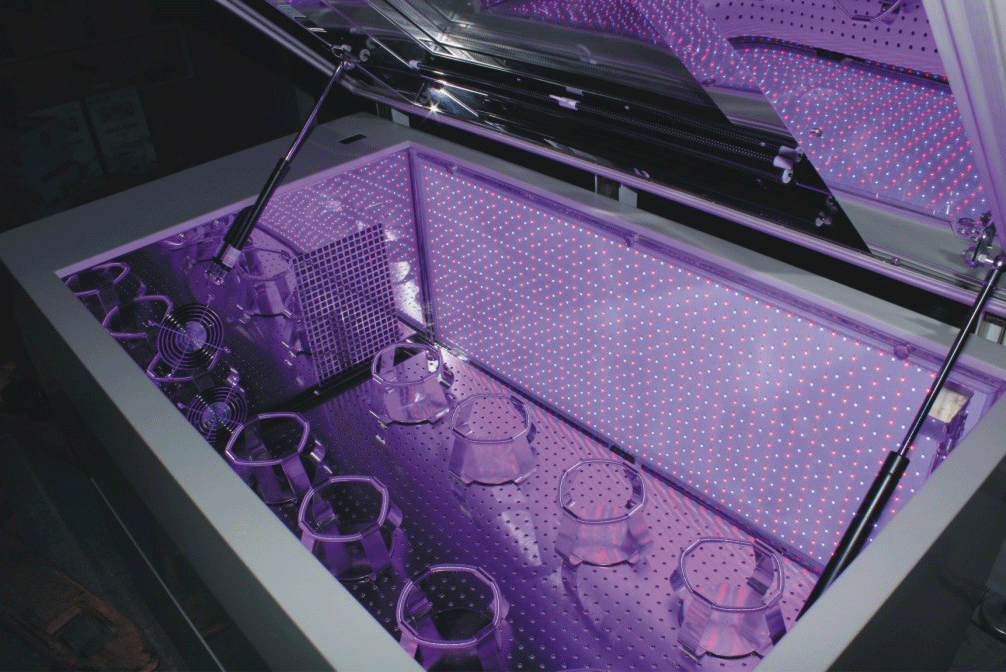

	Model: ZWYR-G211C Shaking Incubator, with LED Lighting for photosynthesis research applications. Setting/Display: Touch Screen Shaking Mode: Orbital Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation LED light source: Red 50%, blue 50% Wavelength: Red light 640~660nm, Blue light 430~450nm Light Intensity: Red 6500 Lux, Blue 6500 Lux. Measured at 10cm distance. Light Intensity Control: individual Red/Blue light control, 1% increment in the range 0~100%. Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Standard Capacity: 2000mlx14 Volumn: 256L Max. Capacity: 50mlx82 or 100mlx82 or 250mlx50 or 500mlx37 or 750mlx28 or 1000mlx22 2000mlx14, 3000mlx8, 5000mlx6 Platform Size: 920x500 mm Platform included: 1 piece Motor Power: 1150W Electrical Requirement: 220-230V 50/60Hz Net/Gross Weight: 183Kg/228Kg Internal dimension: 978x567x468mm External dimension: 1230x770x1060mm Approval: CE marked

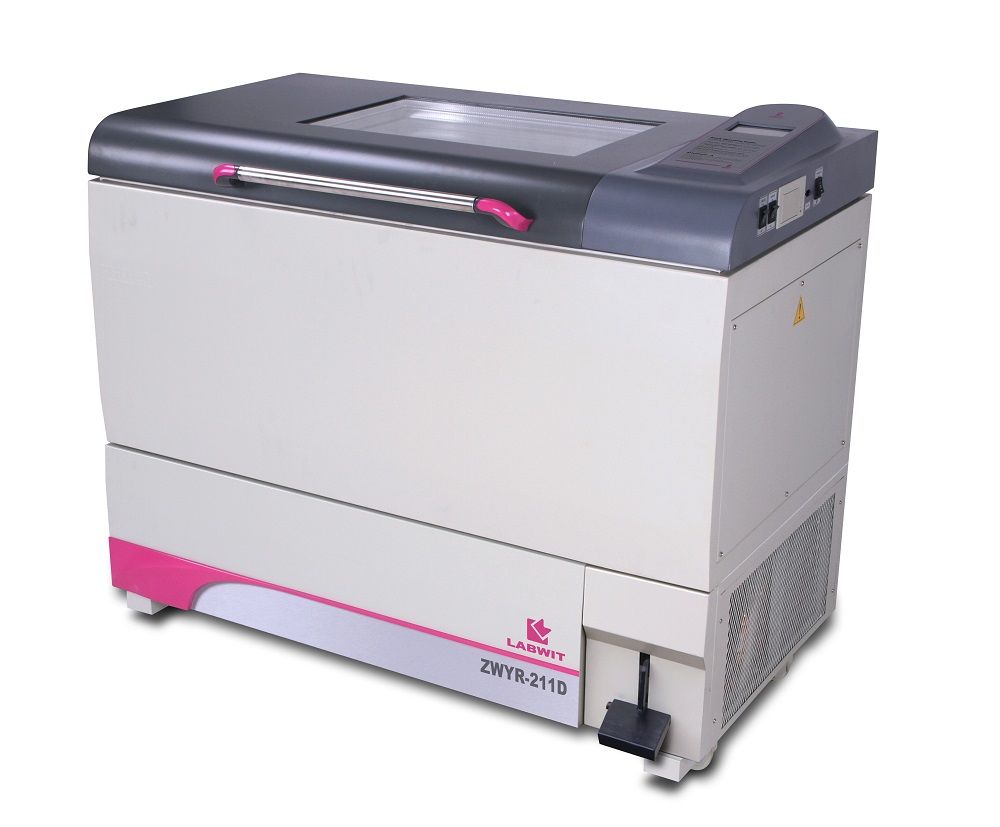

	Model: ZWYR-211D Shaking Incubator Setting/Display: Touch Screen Shaking Mode: Orbital Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Timer: 0~9999 minutes Standard Capacity: Support 2000mlx15 flasks Volume: 304L Max.Capacity: 50mlx94, 100mlx94, 250mlx66, 500mlx44, 750mlx32, 1000mlx27, 2000mlx15, 3000mlx11, 5000mlx8 Cover Lift Mechanism: Foot Pedal Platform Size: 940x584 mm Motor Power: 1800W Electrical Requirement: AC220-230V 50/60Hz Net/Gross Weight: 263Kg/313Kg Internal Dimension: 1038x657x467mm External Dimension: 1290x850x1066mm Approval: CE marked

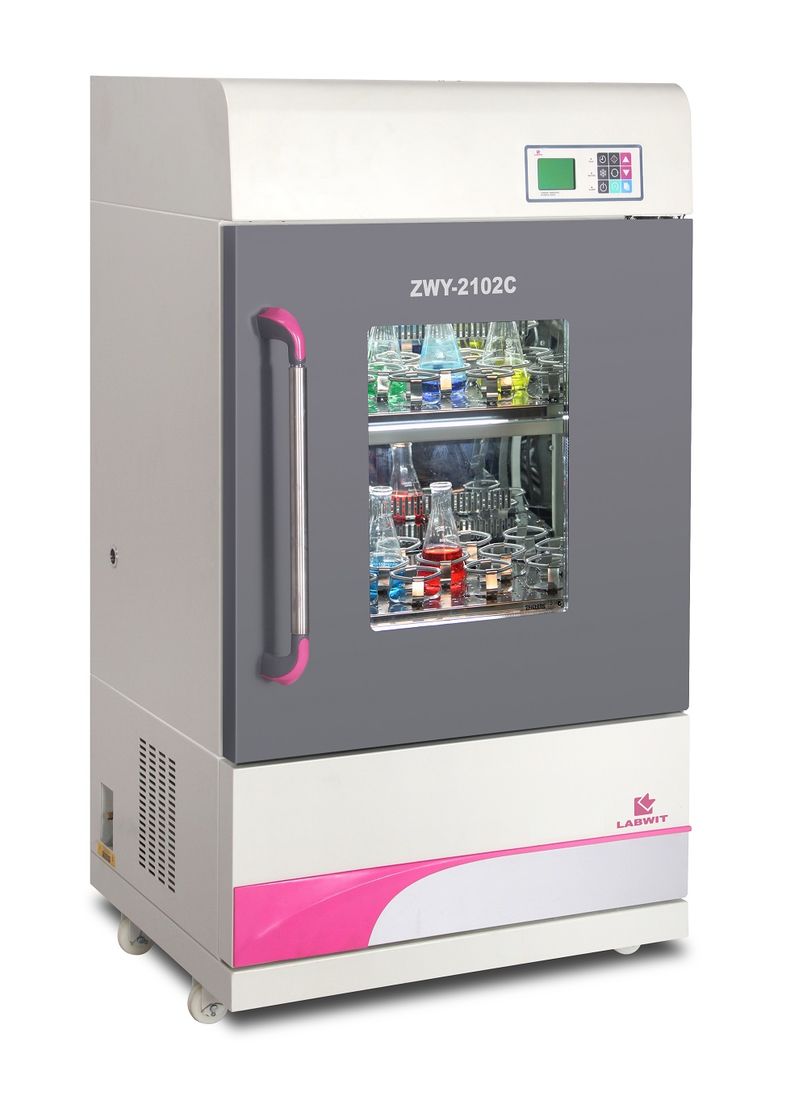

	Model: ZWY-2102C double layer shaking incubator Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Control: P.I.D Microprocessor Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital Timer: 0~9999 minutes Setting: Digital 　 Display: LCD Standard Capacity: 250mlx36 Max.Capacity: 50mlx56 or 100mlx56 or 250mlx36 or 500mlx24 or 750mlx20 Platform Size: 496x350 mm Platform included: 2 pieces　 Motor Power: 1250W Interior Dimension: 612x450x640 mm Exterior Dimension: 720x640x1309 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 165Kg 　 Gross Weight: 190Kg

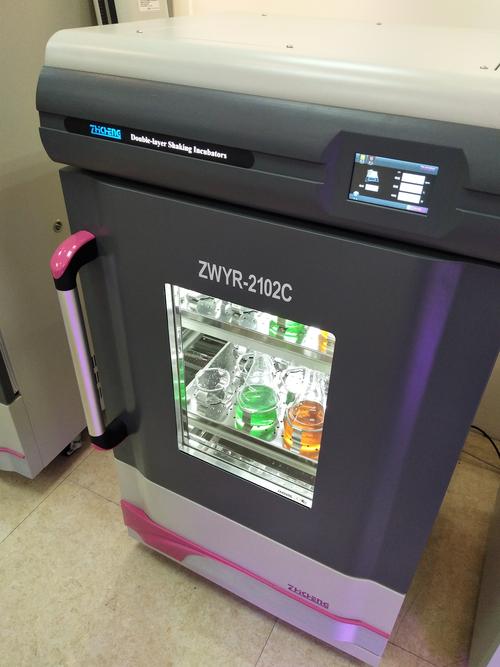

	Model: ZWYR-2102C double layer shaking incubator, advanced. Setting/Display: Touch Screen Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital Timer: 0~9999 minutes Standard Capacity: 250mlx36 Max.Capacity: 50mlx56 or 100mlx56 or 250mlx36 or 500mlx24 or 750mlx20 Platform Size: 496x350 mm Platform included: 2 pieces Motor Power: 1250W Interior Dimension: 612x450x640 mm Exterior Dimension: 720x640x1309 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 165Kg 　　 Gross Weight: 190Kg

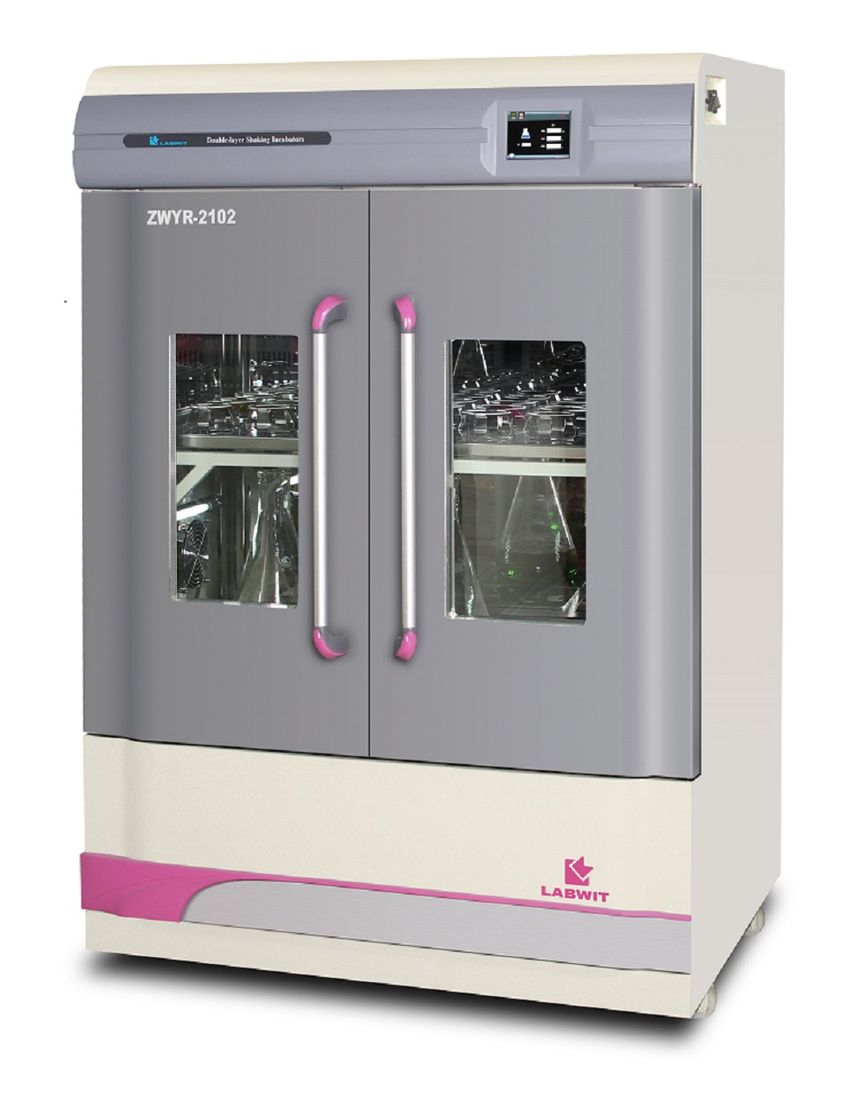

	Model: ZWYR-2102 double layer shaking incubator, with 2 doors. Setting/Display: Touch Screen Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 26mm Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital Timer: 0~9999 minutes Setting: Digital 　 Display: LCD Standard Capacity: 250mlx64 Max.Capacity: 50mlx104 or 100mlx104 or 250mlx64 or 500mlx54 or 750mlx44 or 1000mlx30 Platform Size: 734x458 mm Platform included: 2 pieces Motor Power: 1300W Interior Dimension: 845x531x764 mm Volumn: 332L Exterior Dimension: 950x756x1445 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 235Kg 　 Gross Weight: 272Kg

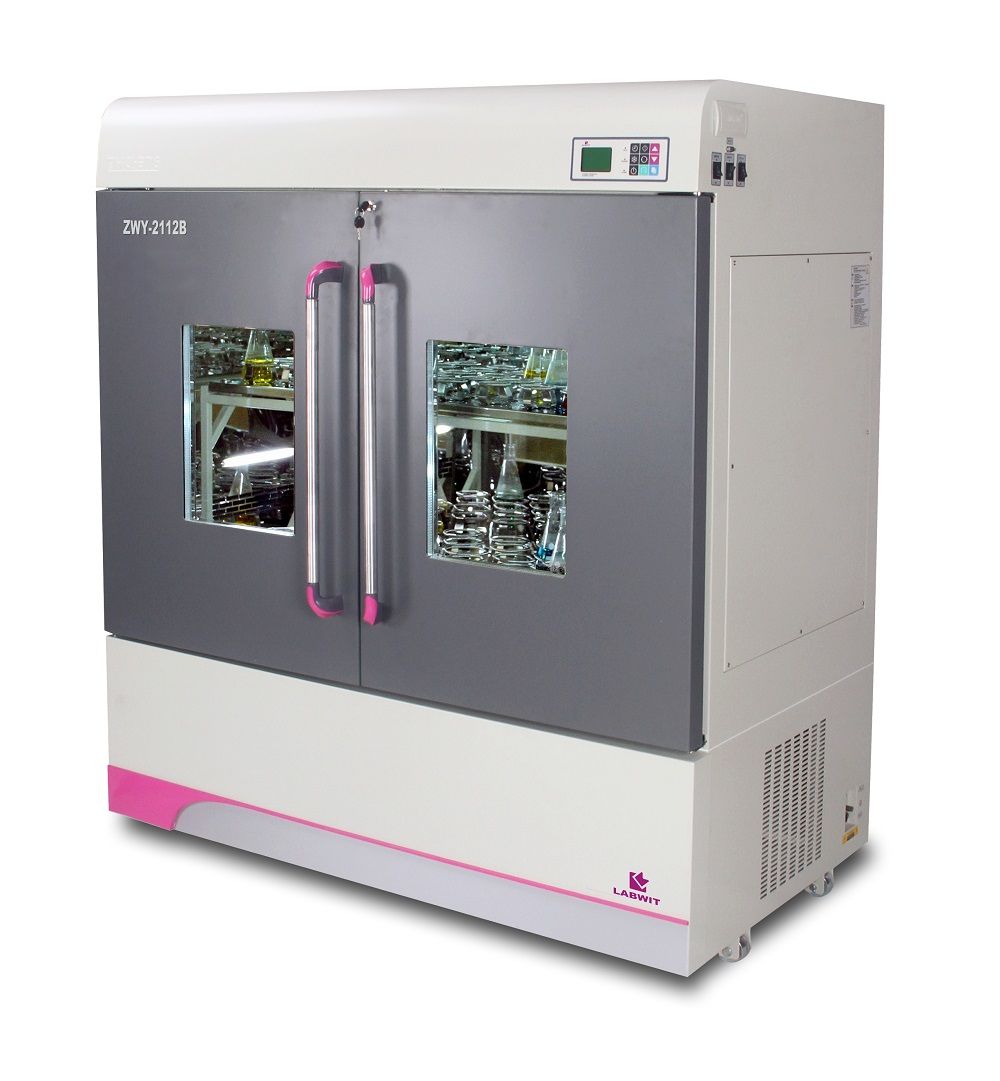

	Model: ZWY-2112B double layer shaking incubator, with 2 doors. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Control: P.I.D Microprocessor Diameter of Orbit: 35mm Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital Timer: 0~9999 minutes Setting: Digital　 Display: LCD Capacity: 50mlx178 or 100mlx178 or 250mlx132 or 500mlx88 or 750mlx64 or 1000mlx52 Platform Size: 970x560 mm Platform included: 2 pieces Motor Power: 1950W Interior Dimension: 1107x664x850 mm Exterior Dimension: 1430x882x1670 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 456Kg 　 Gross Weight: 536Kg

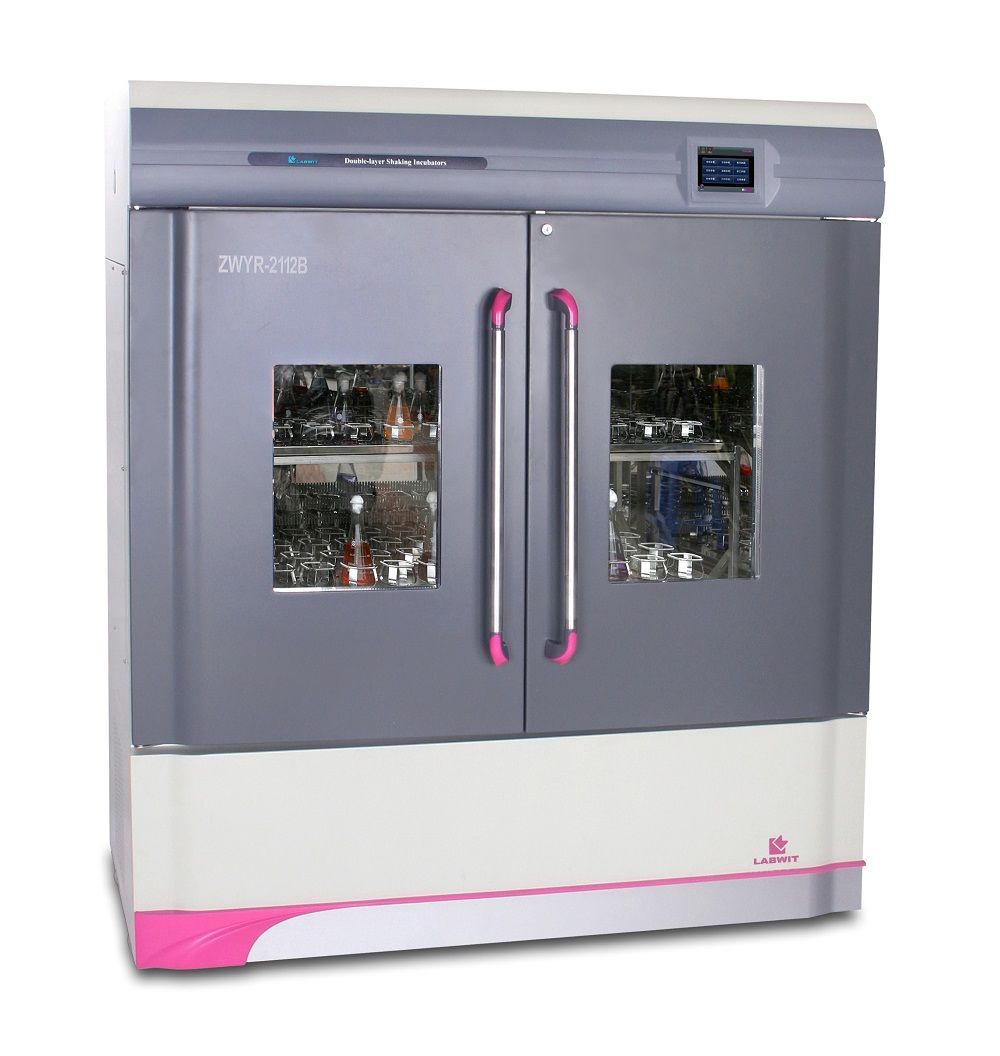

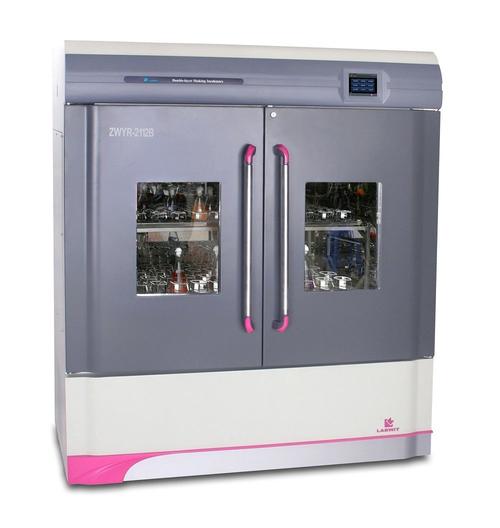

	Model: ZWYR-2112B Advanced, double layer shaking incubator, with two doors. Setting/Display: Touch Screen Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Diameter of Orbit: 35mm Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital 　 Timer: 0~9999 minutes Setting: Digital 　　 Display: LCD Capacity: 50mlx178 or 100mlx178 or 250mlx132 or 500mlx88 or 750mlx64 or 1000mlx52 Platform Size: 970x560 mm Platform included: 2 pieces Motor Power: 1950W Interior Dimension: 1107x664x850 mm Volumn: 624L Exterior Dimension: 1430x882x1670 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 456Kg 　 Gross Weight: 536Kg

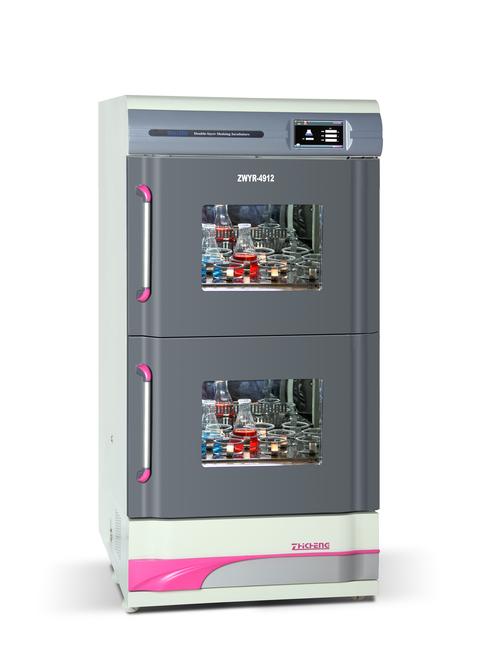

	Model: ZWYR-4912 Advanced, double layer shaking incubator. Chamber numbers: 2, individual control. Setting/Display: Touch Screen　　Control: P.I.D Microprocessor Running mode: fully programmable, 9 programs 18 steps. Temperature Range: 4°C to 60°C, refrigerated. Temperature Set Resolution: ±0.1°C Temperature Uniformity: ±0.5-1°C Heat Distribution: Forced-air circulation Shaking Speed: 30-300 rpm (±1 rpm) Shaking Mode: orbital 　 Diameter of Orbit: 50mm Timer: 0~9999 minutes Options Humidity Range (RH): 45~90% (above 15°C) Humidity Set Resolution: ≤0.1% Humidity Fluctuation: ≤2% LED Lighting: Red, White, Blue. Light Intensity: White 0~15000 Lux, Red 0~12000 Lux Lighting Control: 0~100% Flask Capacity/each chamber: 100mlx54 or 250mlx33 or 500mlx22 or 1000mlx14 or 2000mlx8 or 3000mlx6 or 5000mlx3. Platform Size: 640x420 mm Platform included: 2 pieces Motor Power: 3350W Interior Dimension: 715x560x532 mm/each chamber Volumn: 213L/each chamber Exterior Dimension: 818x915x1795 mm Electrical Requirement: 220-230V 50/60Hz Net Weight: 252Kg 　　 Gross Weight: 295Kg

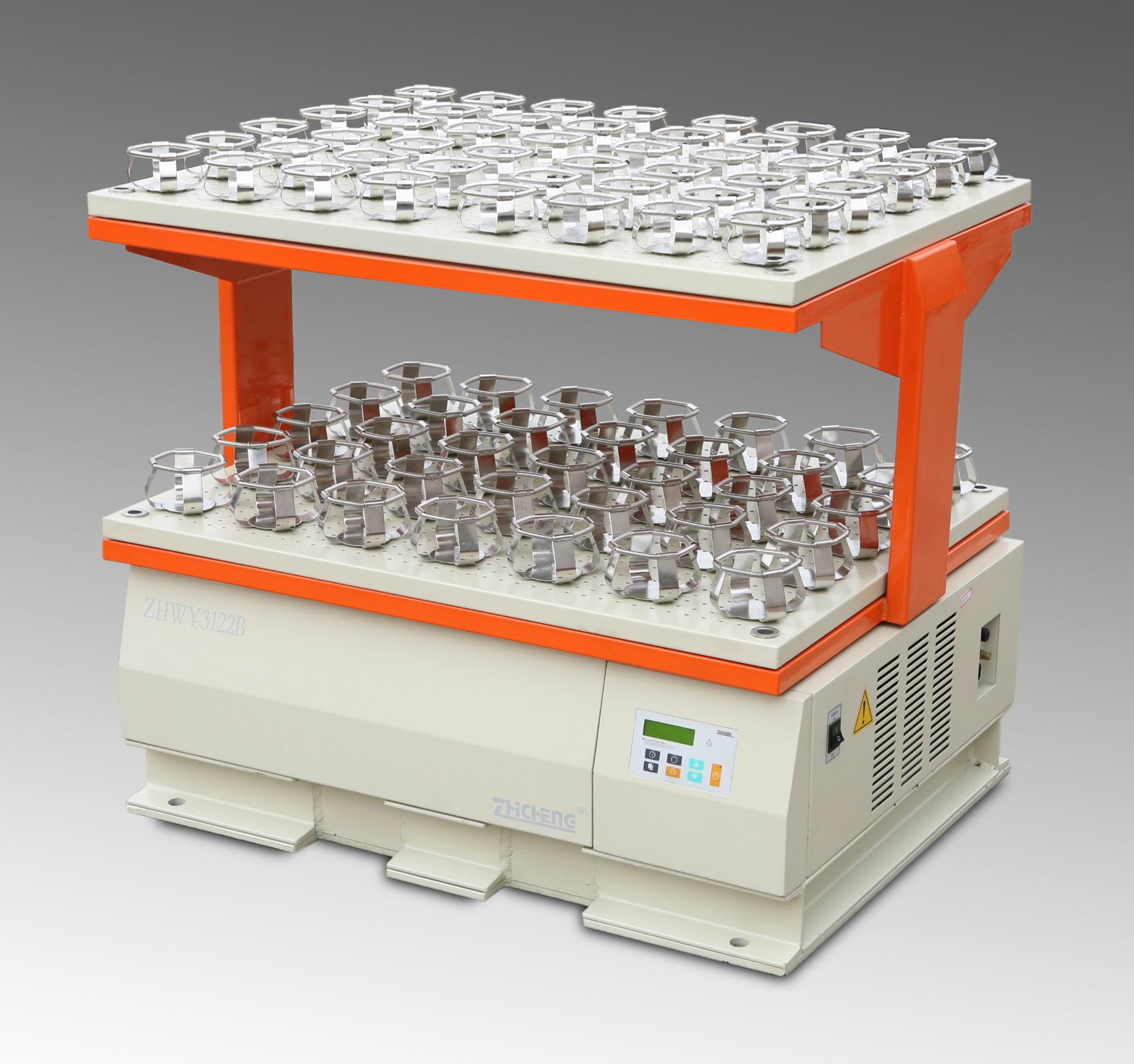

	Model: ZWY-B3222 orbital shaker, without temperature control. Control: P.I.D microprocessor Setting: Digital 　 Display: LCD Shaking Speed: 30-300 rpm (±1rpm) Diameter of Orbit: 50mm Timer: 0-500 hours Capacity: 50mlx212 or 100mlx212 or 250mlx152 or 500mlx104 or 750mlx72 or 1000mlx66 Platform Size: 940x700 mm Platforms included: 2 Pieces External Dimension: 1115x838x817 mm Voltage: 220~230V 50/60Hz　　 Power: 300W Net/Gross Weight: 310Kg/360Kg Approval: CE marked

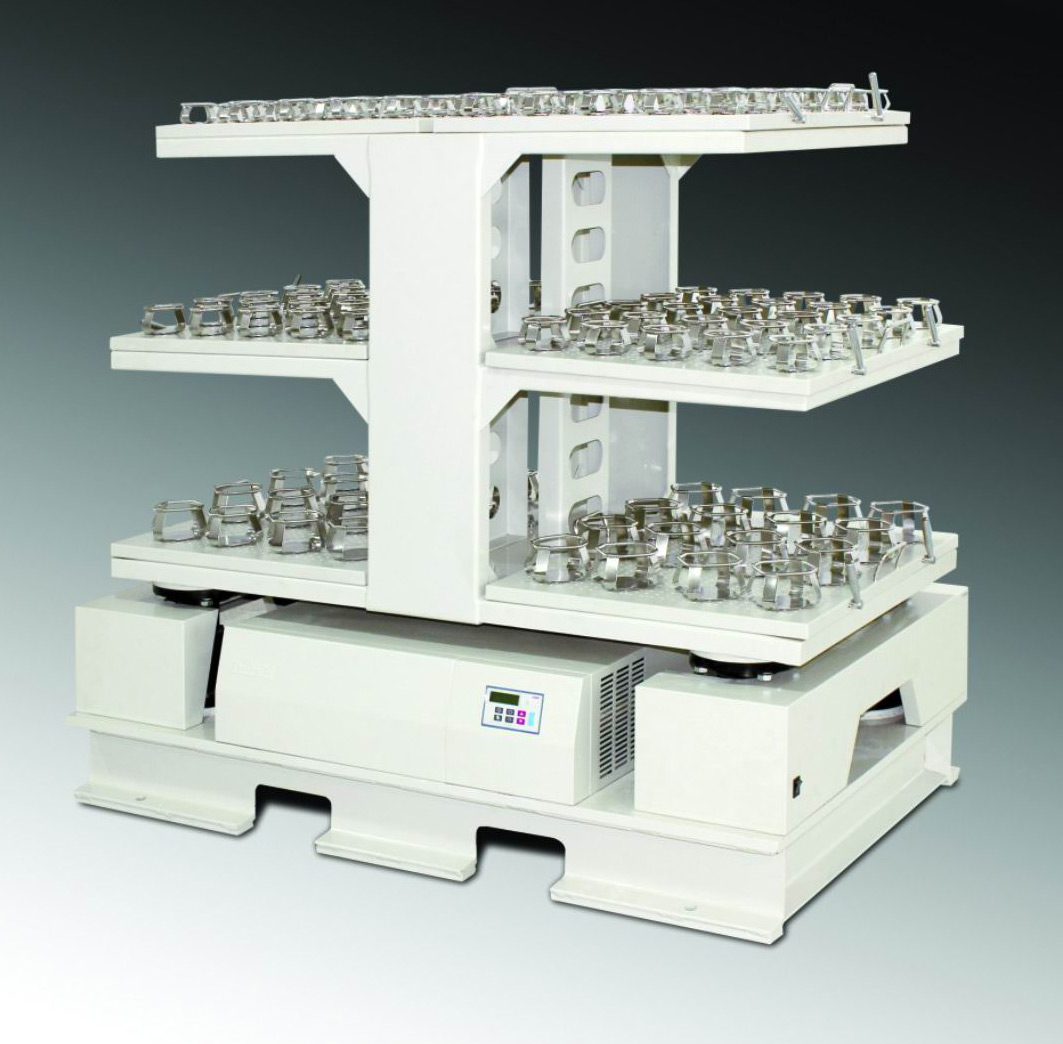

	Model: ZWY-3723B Orbital Shaker, three layers Controller: P.I.D microprocessor Shaking Speed: 30-180 rpm (±1rpm) Shaking Mode: Orbital Diameter of Orbit: 50mm Timer: 0-500 hours 　 Setting: Digital Display: LCD Platform Size: 780x620 mm Platforms included: 6 Capacity: 100mlx52x6 or 250mlx38x6 or 500mlx31x6 or 750mlx22x6 or 1000mlx12x6 or 2000mlx10x6 or 3000mlx7x6 Voltage: 220~230V 50/60Hz 　 Power: 1000W Net/Gross Weight: 560Kg/630Kg External Dimension: 1540x980x1353 mm
	Item: LCD Screen (Standard) The incubator shakers manufactured by ZHICHENG feature a large, bright LCD screen that presents a menu of functional readouts on setpoints of speed, temperature and timer. Its user-friendly interface makes parameter setting as easy as possible, without training for the user being necessary. (Applicable to models: ZWY-211B, ZWY-211C, ZWY-2102C, ZWY-2102, ZWY-2112B)

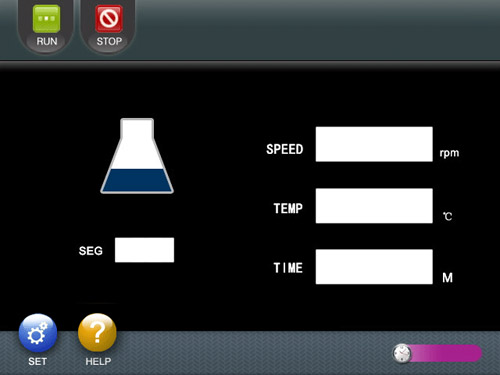

	Item: Easy-to-use, intuitive touch screen controller (Applicable to models: ZWYR-2102C, ZWYR-2102, ZWYR-2112B, ZWYR-4912, ZWYR-211C, ZWYR-211D.) With the newly designed microprocessor-based, 65K colors, 4.3 inch, 480x272 matrix, intuitive operation touch screen controller, controls for entering & viewing setpoints becomes exceptionally easy. The touch screen shows temperature readings along with detailed information on timer, speed, running modes: Manual mode and Programmble mode. The display is bright and clearly visible from all angles.

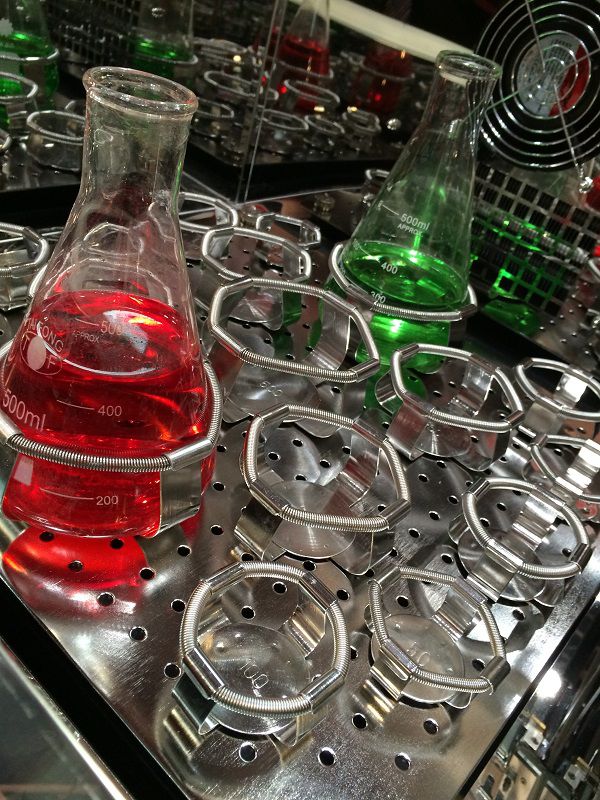

	Accessories Universal accessories for the incubator shakers, including test tube racks, flask clamps, spring wire racks, etc can be ordered separately from ZHICHENG. Please contact our sales office for further information and pricing.
