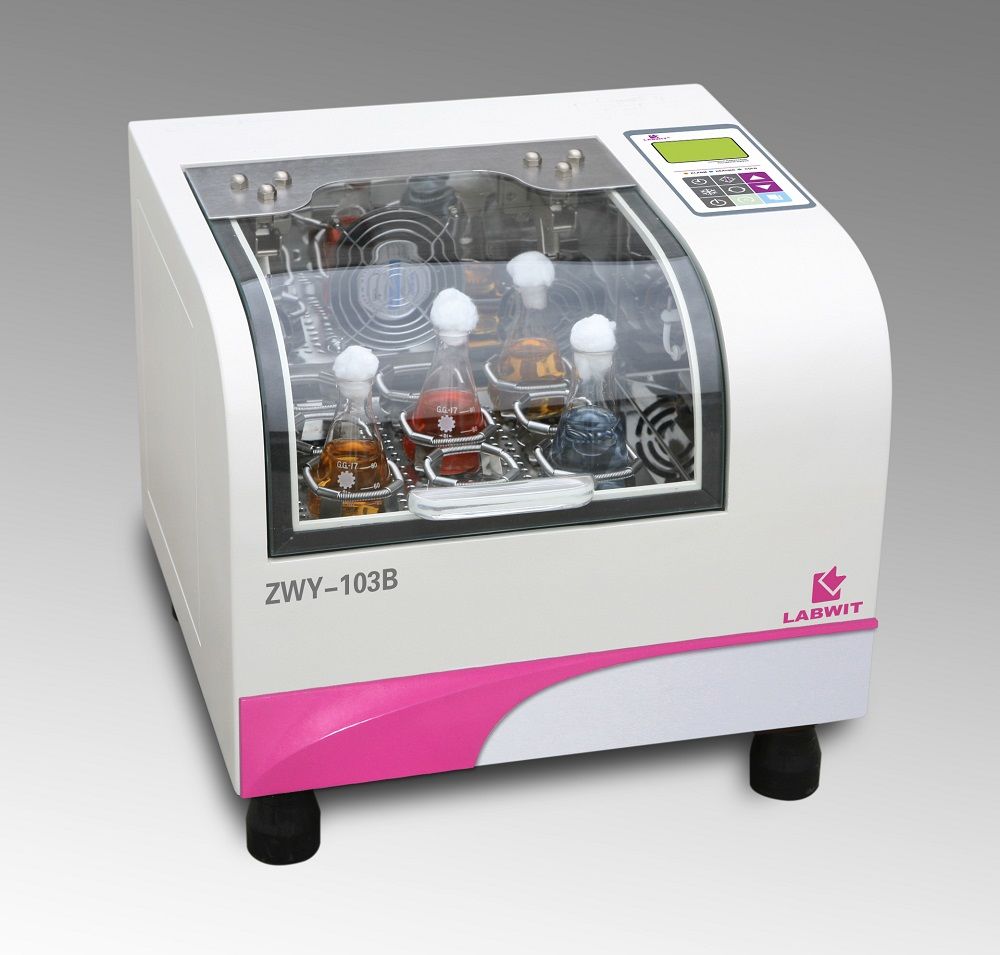

Model: ZWY-103B Benchtop Shaking Incubator
Control: PID microprocessor
Temperature Range: Ambient+5 to 60°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Shaking Mode: Orbital
Shaking Speed: 30-400rpm (±1rpm)
Timer: 0~9999 minutes
Setting: Digital 　　　　 Display: LCD
Capacity: 50mlx14 or 100mlx12 or 250mlx6
Platform Size: 270x220mm　　 Volumn: 18L
Motor Power: 280W
Electricity: AC 220V 50/60Hz
Net/Gross Weight: 31Kg/54Kg
Internal dimension: 340x297x175mm
External dimension: 440x410x397mm

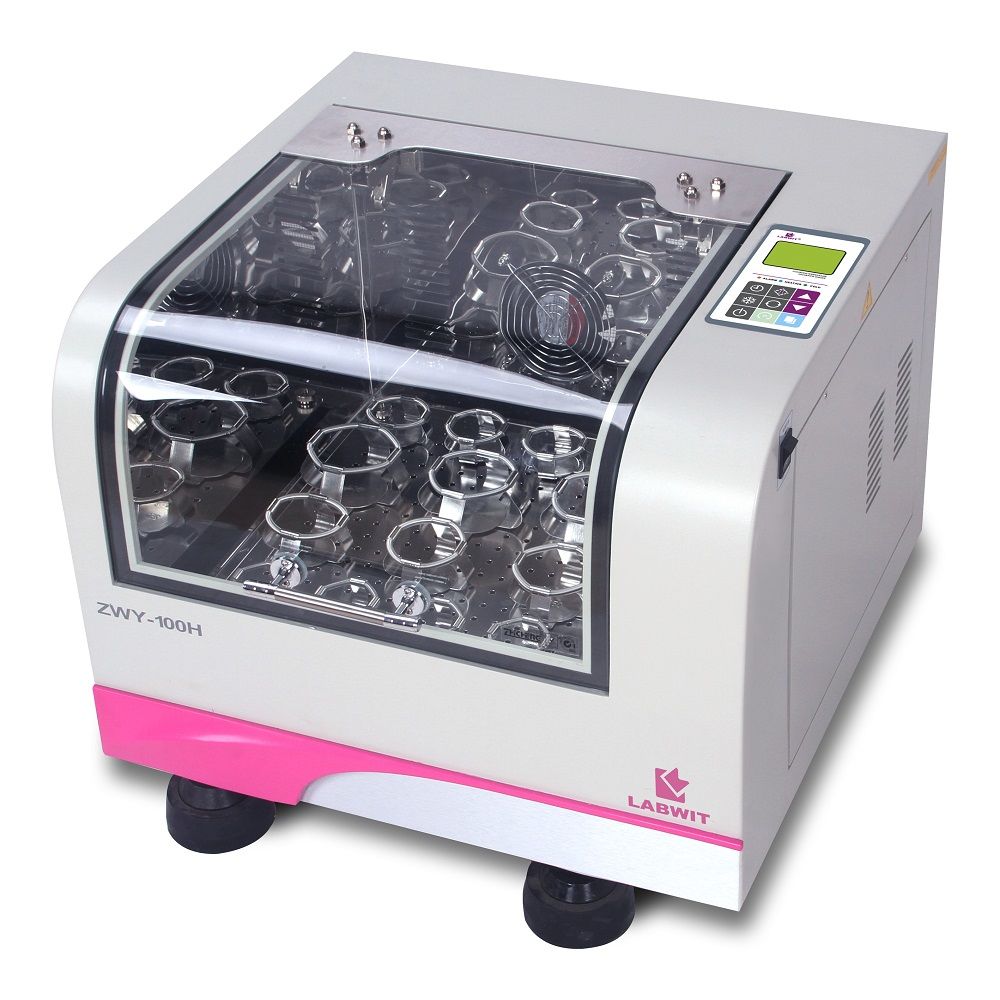

Model: ZWY-100H/100D
Control: PID microprocessor
Temperature Range: Ambient+5 to 60°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Shaking Mode: Orbital
Shaking Speed: 30-400rpm (±1rpm)
Timer: 0~9999 minutes
Setting: Digital　　 Display: LCD
Capacity: 50mlx23 or 100mlx23 or 250mlx14 or 500mlx10 or 750mlx7 or 1000mlx5
Platform Size: 340x370mm　　 Volumn: 54L
Motor Power: 550W
Electricity: AC 220V 50/60Hz
Net/Gross Weight: 72Kg/94Kg
Internal dimension: 410x442x296mm
External dimension: 600x580x518mm

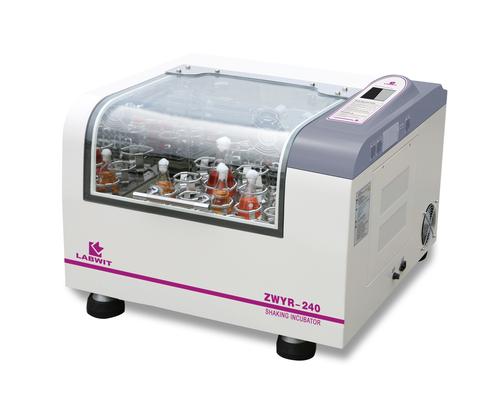

Model: ZWYR-240 (Touch Screen)/ZWY-240 (LCD display)
Control: PID microprocessor
Temperature Range: 4 to 60°C, refrigerated.
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Shaking Mode: Orbital
Shaking Speed: 30-400rpm (±1rpm)
Timer: 0~9999 minutes
Setting/Display: touch screen/LCD
Capacity: 50mlx28 or 100mlx28 or 250mlx17 or 500mlx10 or 750mlx9 or 1000mlx7
Platform Size: 400x370mm　 Volumn: 69L
Motor Power: 700W
Electricity: AC 220V 50/60Hz
Net/Gross Weight: 100Kg/132Kg
Internal dimension: 490x450x335mm
External dimension: 730x740x563mm

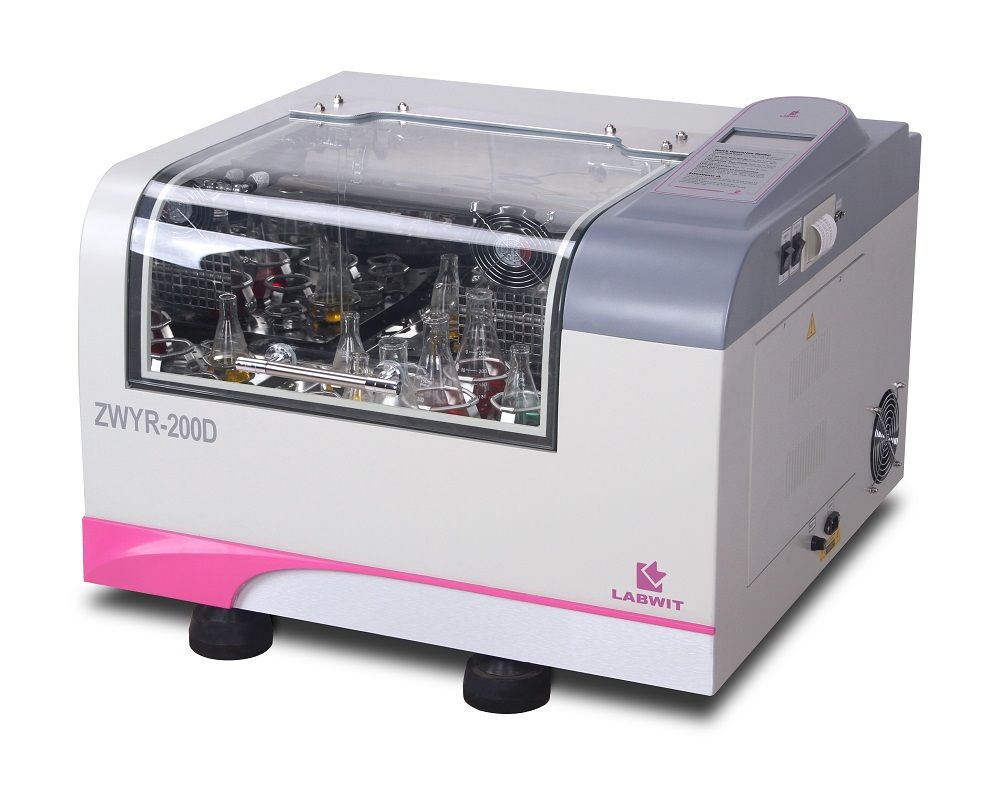

Model: ZWYR-200D (Touch Screen)/ZWY-200D (LCD display)
Control: PID microprocessor
Temperature Range: 4 to 60°C, refrigerated.
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.5-1°C
Shaking Mode: Orbital
Shaking Speed: 30-600rpm (±1rpm)
Timer: 0~9999 minutes
Setting/Display: touch screen/LCD
Capacity: 50mlx28 or 100mlx28 or 250mlx17 or 500mlx10 or 750mlx9 or 1000mlx7
Platform Size: 400x370mm　　 Volumn: 69L
Motor Power: 700W
Electricity: AC 220V 50/60Hz
Net/Gross Weight: 100Kg/132Kg
Internal dimension: 490x450x320mm
External dimension: 774x740x609mm

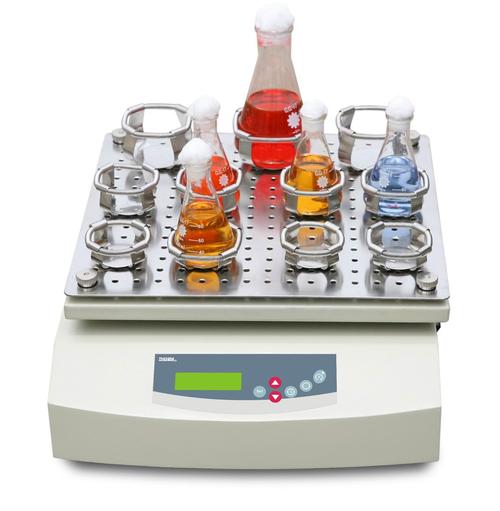

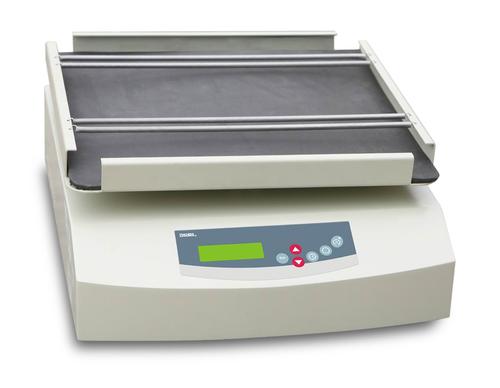

Item: Benchtop Shaker
Model: ZWY-304
Control: P.I.D microprocessor
Shaking Speed: 30-300 rpm (±1rpm)
Shaking Motion: Orbital
Timer: 0-500 hours
Setting: Digital 　 Display: LCD
Maximum Capacity: 7.5Kg
Platform Size: 330x350 mm
Exterior Size: 400x350x235 mm
Voltage: AC 220V 50/60Hz
Power: 50W
Net/Gross Weight: 25.2Kg/43Kg

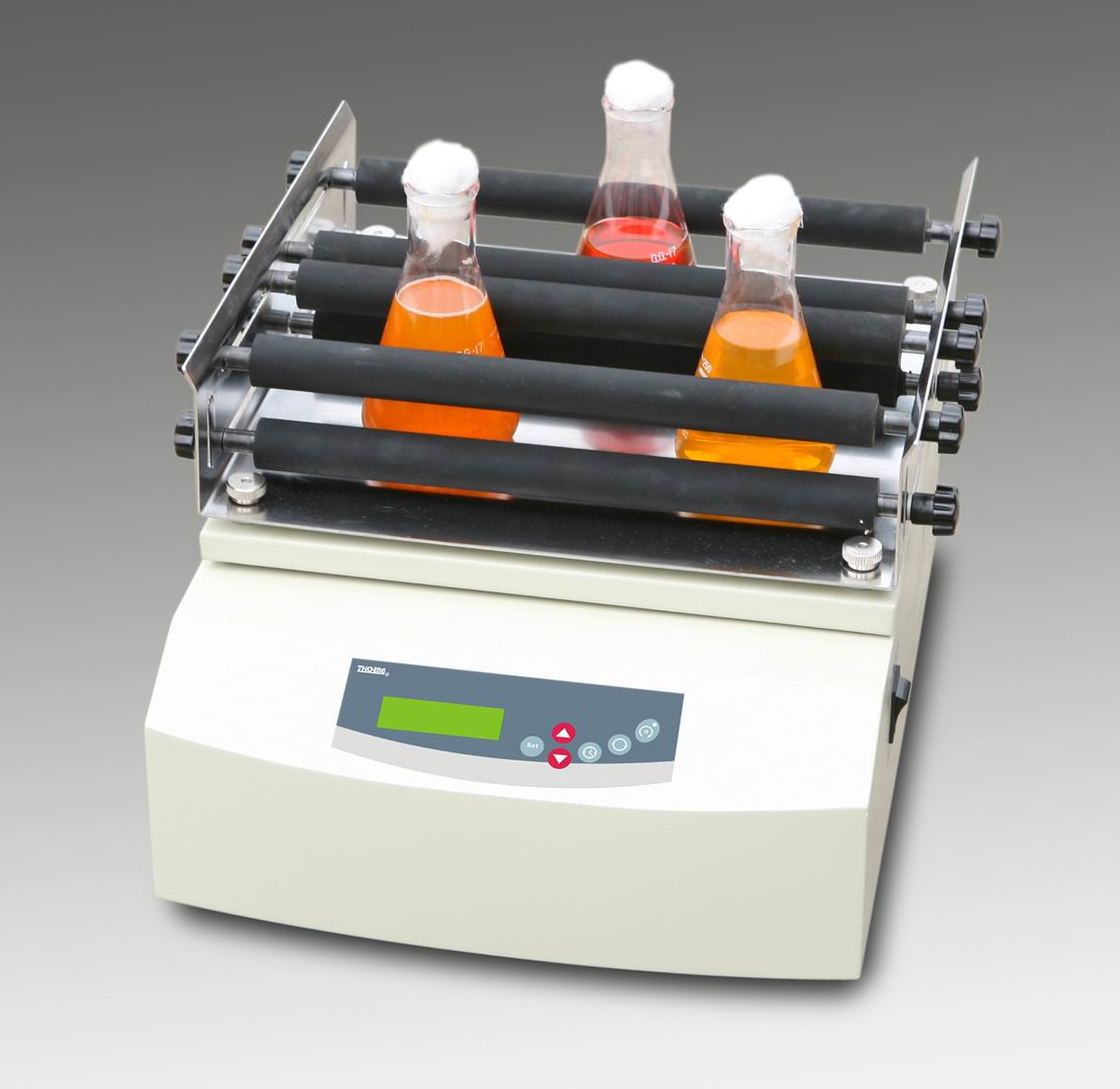

Item: Benchtop Shaker
Model: ZWF-334
Control: P.I.D microprocessor
Shaking Speed: 30-300 rpm (±1rpm)
Shaking Motion: Reciprocating
Timer: 0-500 hours
Setting: Digital 　 Display: LCD
Maximum Capacity: 7.5Kg
Platform Size: 330x350 mm
Exterior Size: 400x350x161 mm
Voltage: AC 220V 50/60Hz
Power: 50W
Net/Gross Weight: 13.2Kg/29Kg
Approval: CE Marked

Item: Benchtop Shaker
Model: ZWQ-344
Control: P.I.D microprocessor
Shaking Speed: 20-80 rpm (±1rpm)
Shaking Motion: Tilting/Rocking
Timer: 0-500 hours
Setting: Digital 　 Display: LCD
Maximum Capacity: 4Kg
Platform Size: 330x350 mm
Exterior Size: 400x350x184 mm
Voltage: AC 220V 50/60Hz
Power: 50W
Net/Gross Weight: 9.5Kg/25Kg
Approval: CE Marked

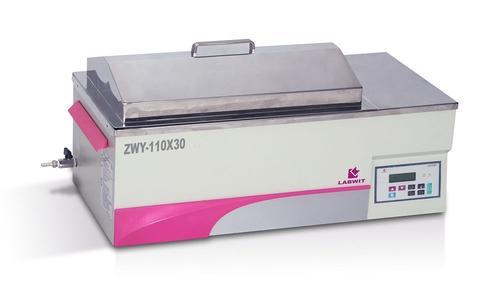

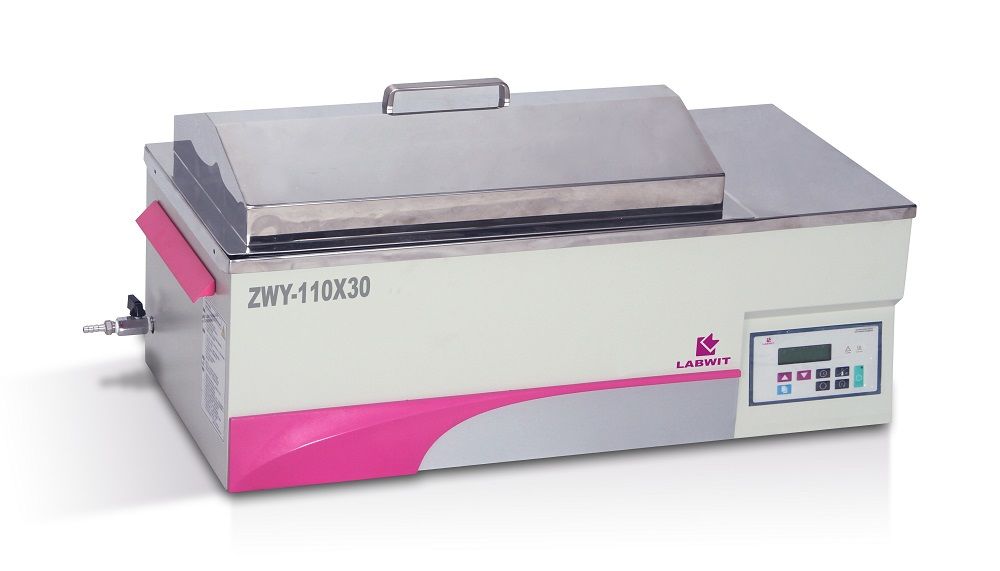

Models: ZWY-110X30/ZWY-110X50
Volumn: 30L/50L
Shaking Mode: Reciprocating
Motor Power: 1600W/2000W
Shaking Speed: 20-180 rpm (±1rpm)
Temperature Range: Ambient +5°C to 99.9°C
Temperature Set Resolution: ±0.1°C
Temperature Uniformity: ±0.2°C
Setting: Digital　　 Display: LCD
Control: Microprocessor
Timer: 1 minute to 500 hours
Tank Size: 508x300x200 mm/568x360x250 mm
Platform Size: 434x256 mm/494x316 mm
Standard Capacity: 250mlx11/250mlx15
Maximum Capacity: 100mlx15, 250mlx11, 500mlx6/100mlx24, 250mlx15, 500mlx11, 1000mlx6.
Net/Gross Weight: 18Kg/24Kg, 23Kg/30Kg
Electricity: 220V 50/60Hz

Item: Accessories

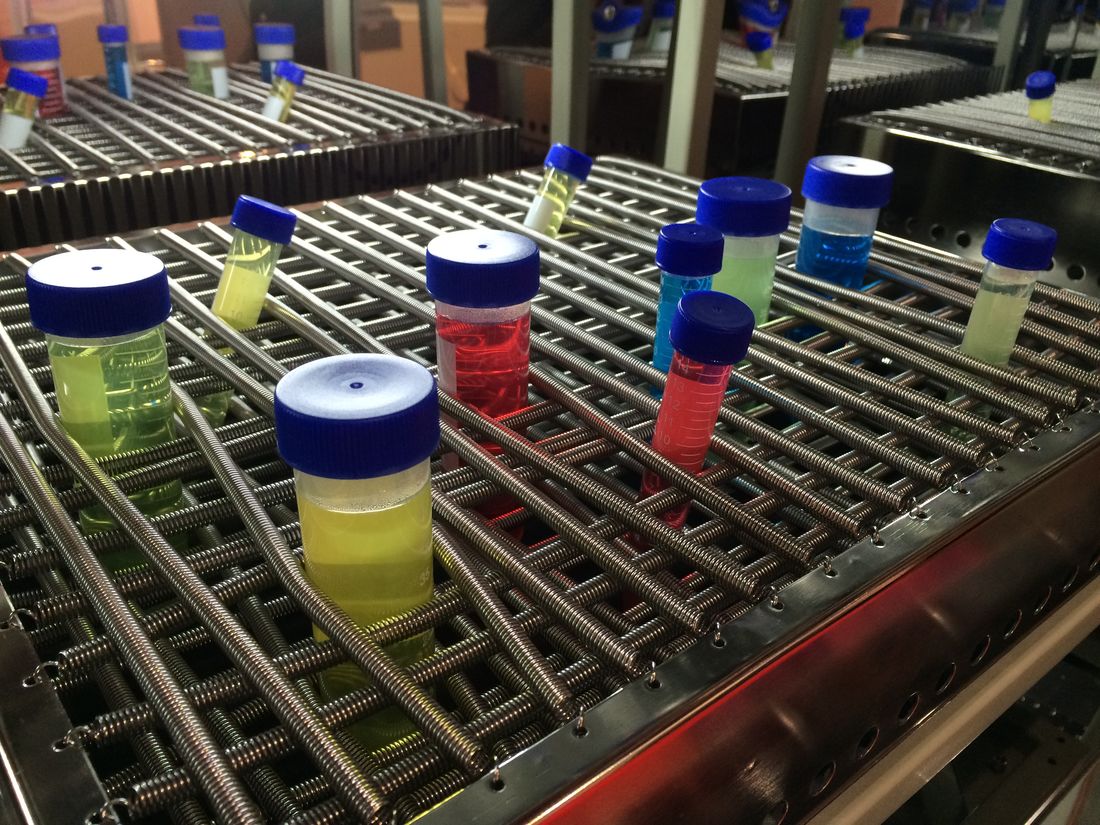

Universal accessories for incubator shakers, including test tube racks, flask clamps, spring wire racks, etc can be ordered separately from ZHICHENG. Please contact our sales office for further information and pricing.
