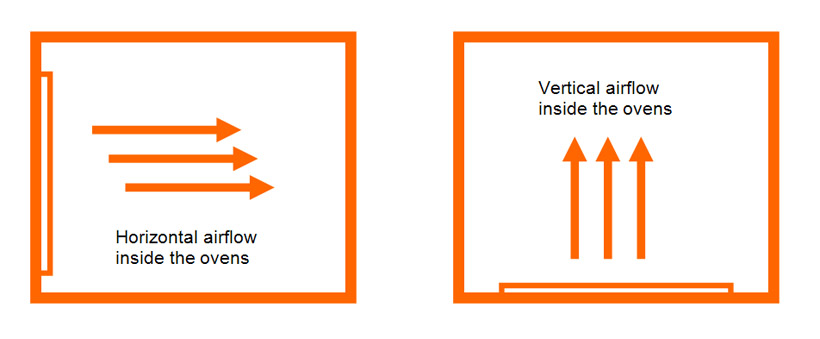

ZXRD/ZXFD-A series forced-air drying ovens manufactured by ZHICHENG are engineered for fast removal of moisture from the samples as quickly as possible. The ovens feature either horizontal or vertical recirculating airflow in the chamber, a high volume fan circulates the air through the perforated, stainless steel shelves to create a constant and uniform airflow across all sections of the oven. Each of the ovens is microprocessor controlled with high-limitation temperature monitoring and real time clock for auto-start. The ovens have two running modes for quick and easy operation: Steady mode and Programmable mode. In the programmable mode, 9 programs can be stored in the memory for running multiple "ramp and soak" cycles, or for just running at one temperature for a given time and then switching automatically to another temperature for another given time. As a standard feature, an alarm is incorporated to warn of overtemperature deviations, and a relay offers immediate heating cutoff in case of fault. Cleaning is easy due to the mirror-finished stainless steel interior. For many years, the customers rely on ZHICHENG ovens for maximum efficiency, increased performance and reduced costs.

Features:

1) P.I.D microprocessor offers advance control.
2) Forced-air circulation provides excellent temperature uniformity.
3) Faster drying processes due to higher airflow rate and exhaust air vents.
4) Real-time clock & timer with delayed autostart from 0 to 99.59 hours.
5) Programs for running multiple "ramp and soak" cycles
6) Audible and visible alarm on over/under temperature.
7) Password protection on safety operation against children and outsiders.
8) Non-volatile memory retains preset parameters during a power failure.
9) Large LCD for easy digital setting and fast readout.
10) Independent triple safety protections to the samples, the user and the oven.
11) SUS304 mirror-finished stainless steel interior offers easy cleaning.
12) Sturdy, welded chamber wall with glassfiber insulation and silicone door gasket.
13) Servicing is easy due to modular structure construction.
14) Extra shelves available.
15) CE Conformance.(Download CE Certificate)





Specifications:

ZXFD-A Series: Vertical Airflow Forced-air Drying Ovens

Model

ZXFD-A5040

ZXFD-A5090

ZXFD-A5140

ZXFD-
A5250

ZXFD-
A5430

ZXFD-
A5600

Capacity (Volumn)

40L

90L

140L

250L

430L

600L

Temperature Range

ambient+5 to 200ºC

Airflow Type

Vertical

Temperature Set Resolution

±0.1ºC

Temperature Fluctuation

±1ºC

Temperature Uniformity

±2.5ºC@200ºC

Timer (minutes)

1~999

Controller

P.I.D microprocessor

Program No.s

9

Running Modes

Manual, Programmable

Temperature Sensor

PT100

Display

LCD

Functions

Auto-diagnostics, over-and undertemperature alarm, relay for heating cutoff, electric leakage protection, real time clock, auto-and delayed start, weekly programmer, non-volatile memory.

Platforms included

2

Interior Size (mm)

345x300x385

400x445x485

500x470x600

600x550x750

700x650x950

800x780x1000

External Size (mm)

535x430x765

590x575x865

690x600x980

790x680x1130

890x780x1330

990x910x1380

Power (W)

700

1100

1600

2100

3100

3700

Electrical Supply

AC220-230V, 50/60Hz

Weight (Kg)

45

55

80

108

170

210

Qualifications

CE Conformance (download CE certificate)

Warranty

1 year or more

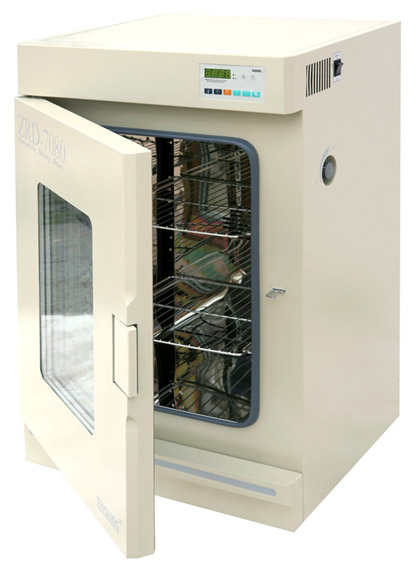

ZXRD-A Series: Horizontal Airflow Forced-air Drying Ovens

Model

ZXRD-A5030

ZXRD-A5055

ZXRD-A5110

ZXRD-A5210

ZXRD-7080

ZXRD-7140

ZXRD-7230

Capacity (Volumn)

30L

55L

110L

210L

80L

140L

230L

Temperature Range

ambient+5 to 200ºC

ambient+5 to 300ºC

Airflow Type

Horizontal

Temperature Set Resolution

±0.1ºC

Temperature Fluctuation

±1ºC

Temperature Uniformity

±2.5ºC@
200ºC

±2.5ºC@
300ºC

Timer (minutes)

1~999

Controller

P.I.D microprocessor

Program No.s

9

Running Modes

Manual, Programmable

Temperature Sensor

PT100

Display

LCD

Functions

Auto-diagnostics, over-and undertemperature alarm, relay for heating cutoff, electric leakage protection, real time clock, auto-and delayed start, weekly programmer, non-volatile memory.

Platform included

2

Interior Chamber Size (mm)

300x300x340

330x360x450

420x400x650

500x550x750

375x375x550

450x450x685

520x550x800

External Size (mm)

490x430x720

520x490x830

610x530x1030

690x680x1130

565x505x930

640x580x1065

710x680x1180

Power (W)

600

800

1300

1700

1500

2100

2700

Electrical Supply

AC220-230V, 50/60Hz

Qualifications

CE Conformance (download CE certificate)

Warranty

1 year or more

Weight (Kg)

40

50

61

98

58

80

104




Mirror-finished SUS304 stainless steel interior provides easy cleaning.
